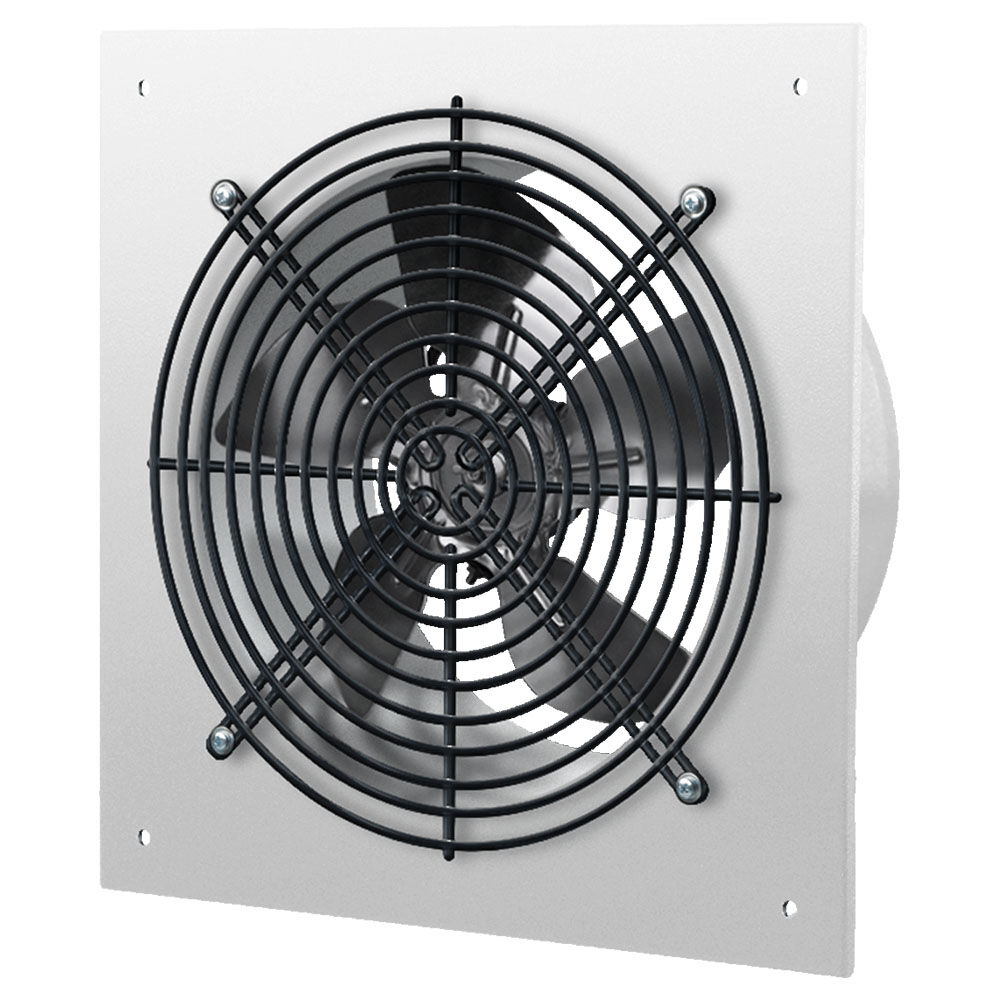

Fanco OV1 250 Commercial Grade Axial Exhaust Fan 250mm

The Fanco ECVUOV250 OV1 250 is a quality commercial grade axial exhaust fan designed to deliver high airflow for demanding ventilation applications. Part of the OV Series, this fan is suited to internal wall or ceiling mounting and offers a strong extraction rate for commercial and larger residential spaces where dependable performance is important. European made and built for reliable operation, it is a practical solution for high airflow exhaust applications. The ECVUOV250 operates on 230V and delivers 1070m³/hr airflow, 297.46l/s and 630.23CFM. It draws 0.48A, uses 68W of power and produces a noise level of 48dB(A). The specification sheet notes IP24 protection and states the fan is suitable only for internal wall or ceiling mounting, though it can be connected to duct so air may be exhausted out of the house. It is also compatible with the ESEEAS speed controller.

  • OV1 250 model
  • Commercial grade axial exhaust fan
  • High airflow design
  • Suitable for internal wall mounting
  • Suitable for ceiling mounting
  • Can be connected to ducting
  • European made
  • 230V operation
  • 0.48A current draw
  • 68W power consumption
  • Airflow 1070m³/hr
  • Airflow 297.46l/s
  • Airflow 630.23CFM
  • Noise level 48dB(A)
  • 250mm duct size
  • IP24 rated
  • Compatible with ESEEAS speed controller
  • Dimmer style speed switch compatible
  • Maximum transferred air temperature 40°C
  • Suitable for indoor applications
  • Ambient temperature range +1°C to +40°C
  • Relative humidity up to 80%
  • Dimensions B 370mm
  • Dimensions B1 320mm
  • Dimensions D 262mm
  • Dimensions L 140mm
  • Dimensions d 7mm
  • 2 year replacement warranty

Click here for Data Sheet

SKU ECVUOV250
Brand Fanco
