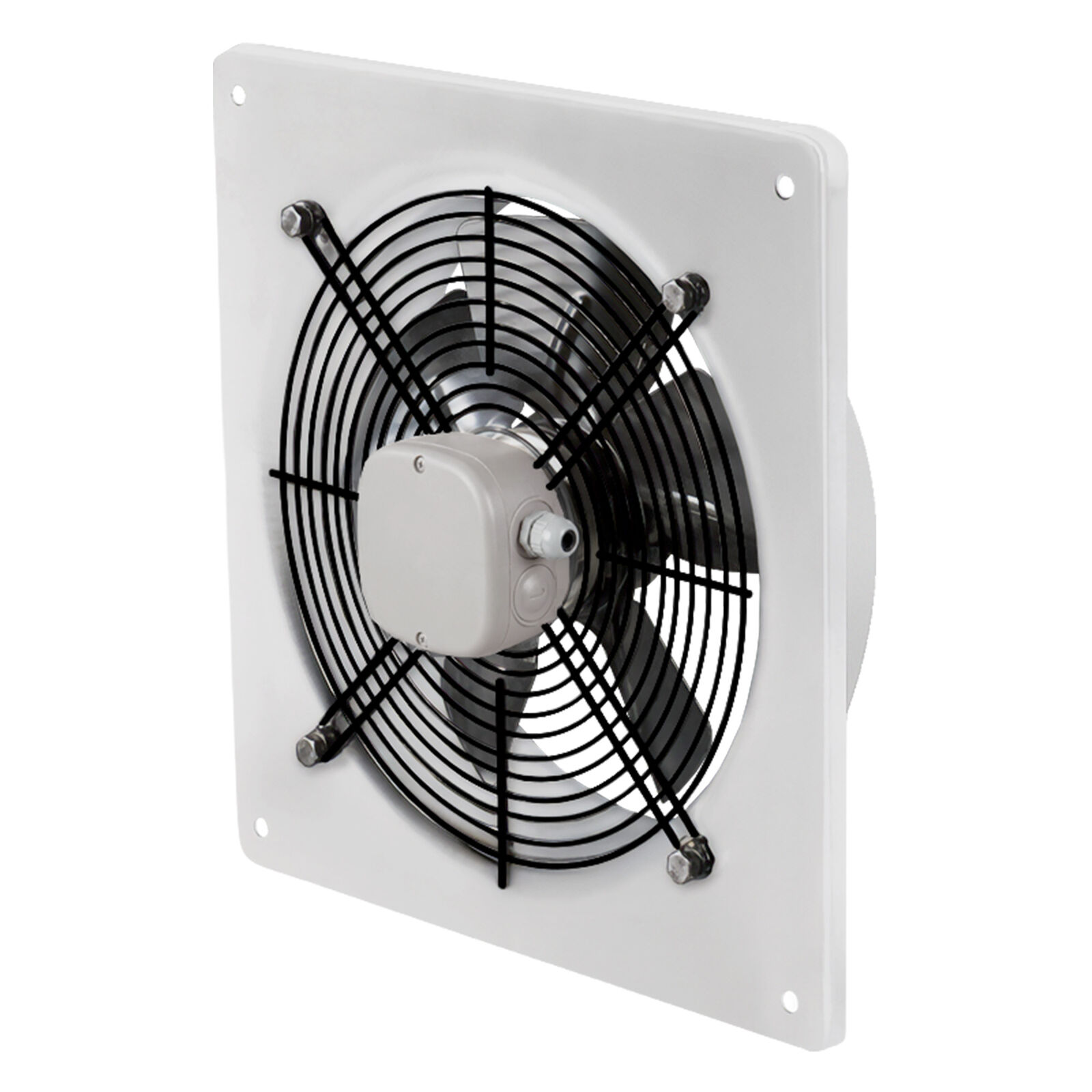

Fanco OV 4E 350 Commercial Grade Axial Exhaust Fan 400mm

The Fanco ECVUOV350E OV 4E 350 is a quality commercial grade axial exhaust fan designed to deliver very high airflow for demanding ventilation applications. Part of the OV Series, this fan is suited to internal wall or ceiling mounting and offers a strong extraction rate for commercial and larger residential spaces where dependable performance is important. European made and built for reliable operation, it is a practical solution for high airflow exhaust applications. The ECVUOV350E operates on 220 to 240V and delivers 2500m³/hr airflow, 694.44l/s and 1471.44CFM. It draws 0.65A, uses 140W of power and produces a noise level of 62dB(A). The specification sheet notes IP24 protection and states the fan is suitable only for internal wall or ceiling mounting, though it can be connected to duct so air may be exhausted out of the house. It is also compatible with the ESEEAS speed controller

  • OV 4E 350 model
  • Commercial grade axial exhaust fan
  • High airflow design
  • Suitable for internal wall mounting
  • Suitable for ceiling mounting
  • Can be connected to ducting
  • European made
  • 220 to 240V operation
  • 0.65A current draw
  • 140W power consumption
  • Airflow 2500m³/hr
  • Airflow 694.44l/s
  • Airflow 1471.44CFM
  • Noise level 62dB(A)
  • 400mm duct size
  • IP24 rated
  • Compatible with ESEEAS speed controller
  • Dimmer style speed switch compatible
  • Maximum transferred air temperature 40°C
  • Suitable for indoor applications
  • Ambient temperature range +1°C to +40°C
  • Relative humidity up to 80%
  • Dimensions B 485mm
  • Dimensions B1 435mm
  • Dimensions D 388mm
  • Dimensions L 200mm
  • Dimensions d 9mm
  • 2 year replacement warranty

Click here for Data Sheet

SKU ECVUOV350E
Brand Fanco
