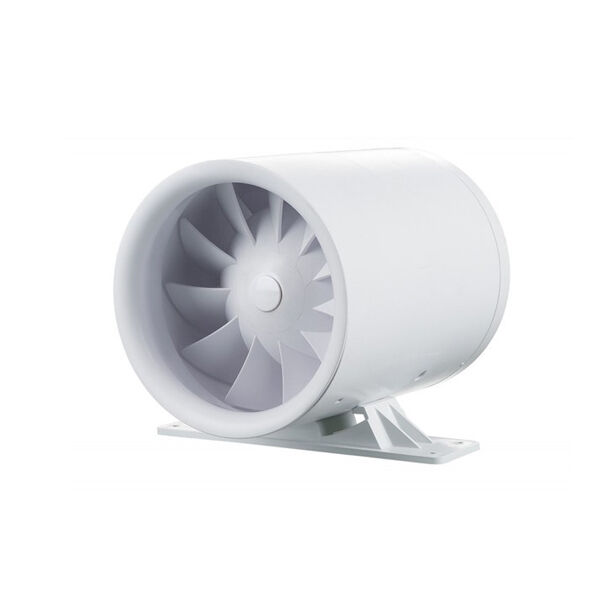

Fanco Compact Axial Inline Fan 150mm

The Fanco EXVUVKOQ3 is a compact axial inline fan designed for simple and effective inline ventilation in residential and light commercial applications. Based on the 150mm VKO model data, it offers a practical low noise solution for ducted airflow where a compact footprint is important. With a European motor and IPX4 protection, it is suited to indoor ventilation systems requiring dependable everyday performance. The 150mm model operates on 220 to 240V and delivers 358m³/hr airflow, 99.52l/s and 210.86CFM. It draws 0.13A, uses 29W of power and produces a noise level of 44dB(A). The sheet also notes that the single speed motor cannot be used with a speed control.

  • Based on 150mm VKO model data in supplied sheet
  • 150mm compact axial inline fan
  • Compact inline ventilation solution
  • Suitable for residential and light commercial use
  • European motor
  • 220 to 240V operation
  • 0.13A current draw
  • 29W power consumption
  • Airflow 358m³/hr
  • Airflow 99.52l/s
  • Airflow 210.86CFM
  • Noise level 44dB(A)
  • 150mm duct size
  • IPX4 rated
  • Single speed motor
  • Cannot be used with speed control
  • Suitable for indoor applications
  • Maximum transferred air temperature 40°C
  • Ambient temperature range +1°C to +40°C
  • Relative humidity up to 80%
  • Dimensions D 150mm
  • Dimensions D1 154mm
  • Dimensions L 108mm
  • Dimensions L1 46mm
  • Dimensions H 163mm
  • Dimensions B 200mm
  • Dimensions B1 184mm
  • Dimensions L2 45mm
  • Dimensions L3 29mm
  • 2 year replacement warranty
