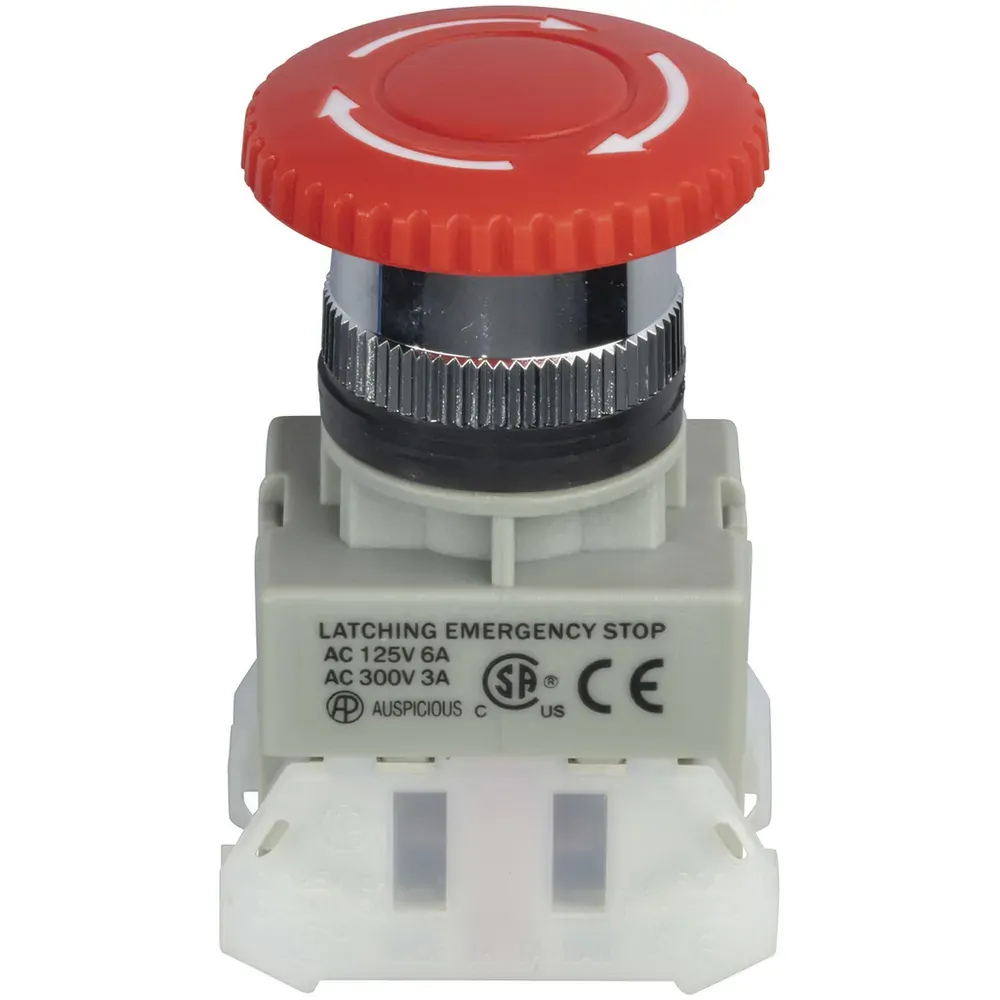

Electus 22mm Emergency Stop Push Button (1NO + 1NC)

The SP0786 is a 22mm diameter emergency stop push button designed for industrial machinery and control panels. Featuring 1 Normally Open (NO) and 1 Normally Closed (NC) contact configuration, it provides reliable and immediate shutdown functionality for safety-critical applications. This unit is suitable for AC and DC systems and is built to withstand demanding industrial environments

  • Ambient temperature range: -20°C to +60°C
  • Contact resistance: 50mΩ max
  • Insulation resistance: 100MΩ min
  • Dielectric strength: 2500V AC for 1 minute (between live and dead parts)
  • Push button (illuminated type): 3,000,000 operations
  • Selector switch: 500,000 operations
  • Operating frequency: 30 operations per minute

Click here for Data Sheet

SKU SP0786
Brand Electus
