Siemens SIRIUS ACT Emergency Stop Station IP66/IP67 40mm Red E-Stop 1NC

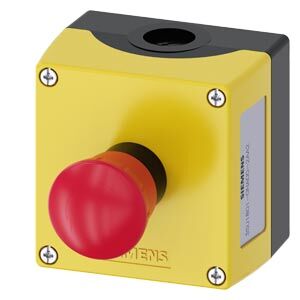

The Siemens 3SU1801-0NA00-2AA2 is a complete SIRIUS ACT emergency stop control station designed for machine safety and industrial applications. It features a 40mm red mushroom emergency stop pushbutton with positive latching and rotate-to-unlatch mechanism, mounted in a yellow IP-rated enclosure.

Compliant with ISO 13850 requirements, this E-Stop station includes one normally closed (1NC) contact with positive opening operation, making it suitable for safety-related circuits. The enclosure is floor mountable and provides cable routing via M20 entries on both the top and bottom.

  • Complete emergency stop control station
  • 40mm red mushroom pushbutton
  • Positive latching with rotate-to-unlatch release
  • 1 x Normally Closed (NC) contact
  • Positive opening operation
  • ISO 13850 compliant emergency stop function
  • IP66, IP67 and IP69/IP69K protection
  • NEMA 1, 2, 3, 3R, 4, 4X, 12K, 13 ratings
  • Yellow plastic enclosure
  • Vertical mounting
  • Cable routing above and below (1 x M20 each)
  • Screw-type terminals

Click here for Data Sheet



SKU 3SU1801-0NA00-2AA2
Brand Siemens
