CABAC 23T Copper & Aluminium Crimping Die Set with 12/13T Adaptor

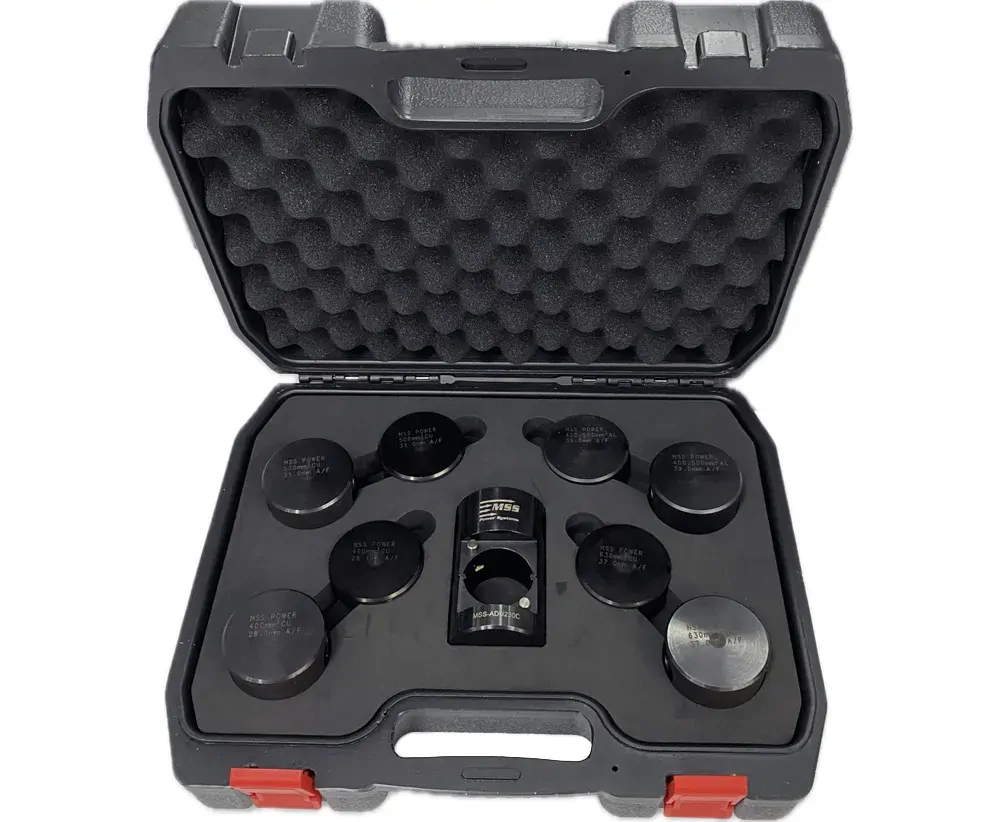

The CABAC DIESET-23AD is a complete 23 tonne crimping die set designed for large copper and aluminium conductor applications. It includes dies for copper conductors from 400mm² to 630mm², an aluminium die for 400-500mm² conductors, plus the MSS-ADU230C adaptor for using compatible 12/13 tonne dies covering 6-300mm² in a 23T crimping tool. The set is supplied in a moulded carry case with a fitted tray and foam insert for organised storage and transport.

  • 23 tonne crimping die set
  • Designed for copper and aluminium conductors
  • Suitable for compatible 23T crimping tools
  • Copper conductor range 400-630mm²
  • Aluminium conductor range 400-500mm²
  • Includes 12/13T die adaptor
  • Adaptor supports compatible 6-300mm² dies
  • Includes MSS-UD400CU copper die for 400mm²
  • Includes MSS-UD500CU copper die for 500mm²
  • Includes MSS-UD630CU copper die for 630mm²
  • Includes MSS-UD400500AL aluminium die for 400-500mm²
  • Includes MSS-ADU230C adaptor
  • Copper A/F sizes 28.1mm, 31.0mm and 37.0mm
  • Aluminium A/F size 39.0mm
  • Copper crimp widths 16.5mm and 12.2mm
  • Aluminium crimp width 25.0mm
  • Supplied in moulded carry case
  • Fitted tray and foam insert
  • Case dimensions 38 x 30 x 11cm

Click here for Data Sheet

SKU DIESET-23AD
Brand Cabac
