CABAC 12/13T Copper, Aluminium & Overhead Crimping Die Set

CABAC 12/13T Copper Aluminium & Overhead Crimping Die Set

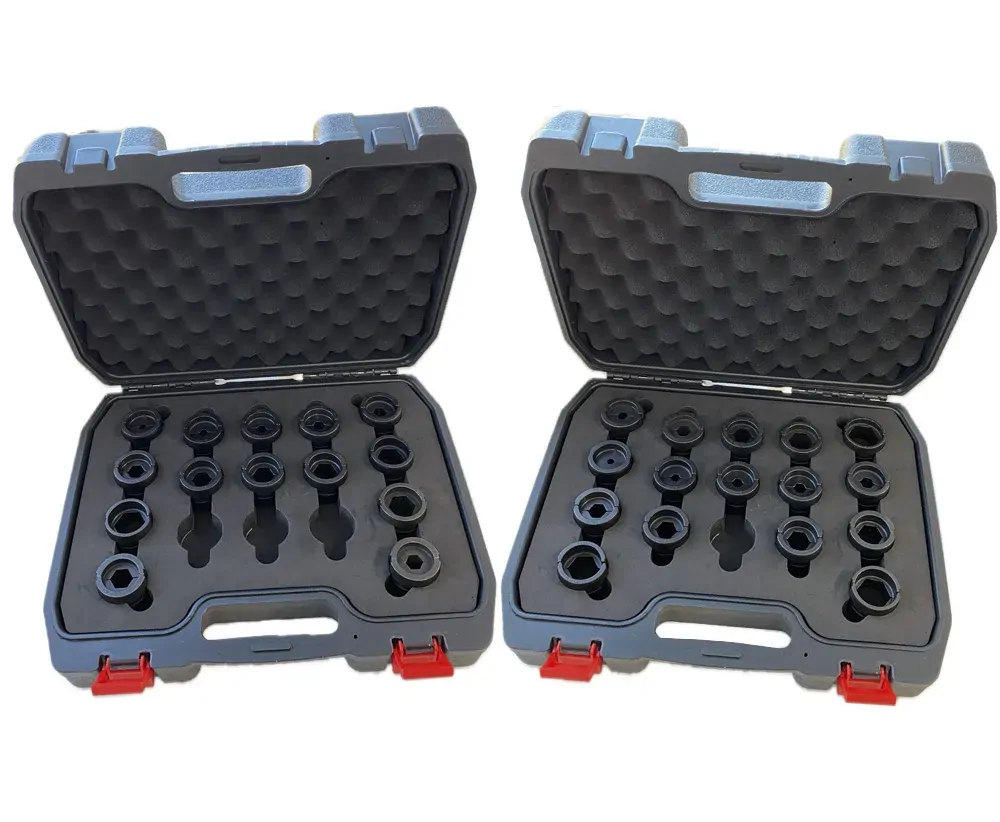

The CABAC DIESET-13F is a comprehensive 12/13 tonne crimping die set designed for copper, aluminium and overhead conductor applications. It covers copper up to 300mm², aluminium up to 300mm², ABC aluminium, overhead hard drawn copper and AAC/AAAC/ACSR aluminium conductors, with the full set supplied across two moulded carry cases for organised transport and job-site use.

12/13 tonne crimping die set
Multi-application die set
Supplied in 2 carry cases
Suitable for compatible 12/13 tonne crimping tools
Copper conductor range 16-300mm²
Aluminium conductor range 6-300mm²
ABC aluminium range 25-150mm²
Overhead hard drawn copper range 16-95mm²
AAC/AAAC/ACSR aluminium range 7/2.25 to 19/3.75
Includes 30 dies in total
Includes 11 copper dies
Includes 5 aluminium dies
Includes 3 ABC aluminium dies
Includes 6 overhead hard drawn copper dies
Includes 5 AAC/AAAC/ACSR aluminium dies
Copper dies for 16, 25, 35, 50, 70, 95, 120, 150, 185, 240 and 300mm²
Aluminium dies for 6-35, 50-70, 95-120, 150-185 and 240-300mm²
ABC aluminium dies for 25, 25-70 and 95-150mm² conductors
Overhead hard drawn copper dies for 16, 25, 35, 50, 70 and 95mm²
AAC/AAAC/ACSR dies for 7/2.25, 7/2.50, 7/3.00-3.75, 7/4.50 and 19/3.75 conductors
Designed for field service and workshop use

Click here for Data Sheet

SKU	DIESET-13F
Brand	Cabac
