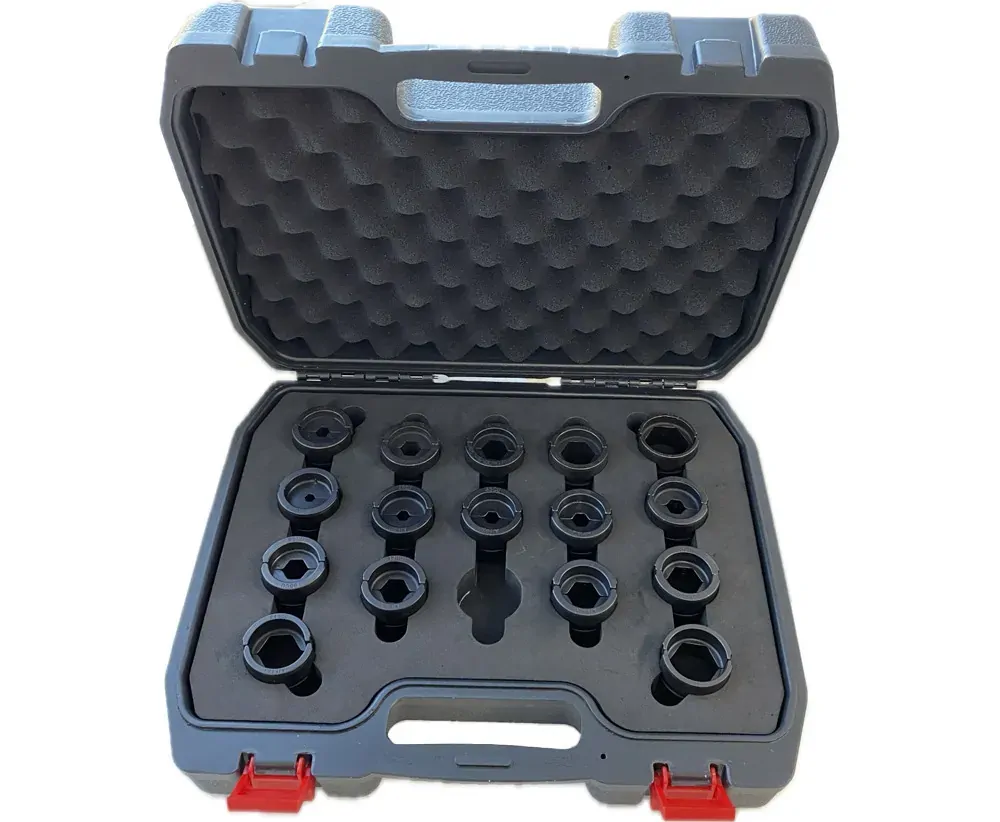

CABAC 12/13T Copper & Aluminium Crimping Die Set 6-300mm²

The CABAC DIESET-13CA is a combined 12/13 tonne crimping die set designed for both copper and aluminium conductors. It covers copper sizes from 16mm² to 300mm² and aluminium sizes from 6mm² to 300mm², with 16 dies supplied in a moulded carry case with a fitted foam insert for organised storage and transport.

• 12/13 tonne crimping die set
• Combined copper and aluminium die kit
• Copper conductor range 16-300mm²
• Aluminium conductor range 6-300mm²
• Suitable for compatible 12/13 tonne crimping tools
• Includes 16 dies in total
• Includes 11 copper dies
• Includes 5 aluminium dies
• Copper dies for 16, 25, 35, 50, 70, 95, 120, 150, 185, 240 and 300mm²
• Aluminium dies for 6-35, 50-70, 95-120, 150-185 and 240-300mm²
• Copper A/F sizes from 6.3mm to 26.0mm
• Aluminium A/F sizes from 9.0mm to 28.4mm
• Copper crimp widths 17.5mm, 14mm and 10mm depending on die size
• Aluminium crimp widths 22mm and 18mm depending on die size
• Supplied in moulded carry case
• Fitted foam insert for organised storage
• Carry case capacity up to 17 dies
• Case dimensions 38 x 30 x 11cm

Click here for Data Sheet
