CABAC 12/13T Aluminium Crimping Die Set 6-300mm²

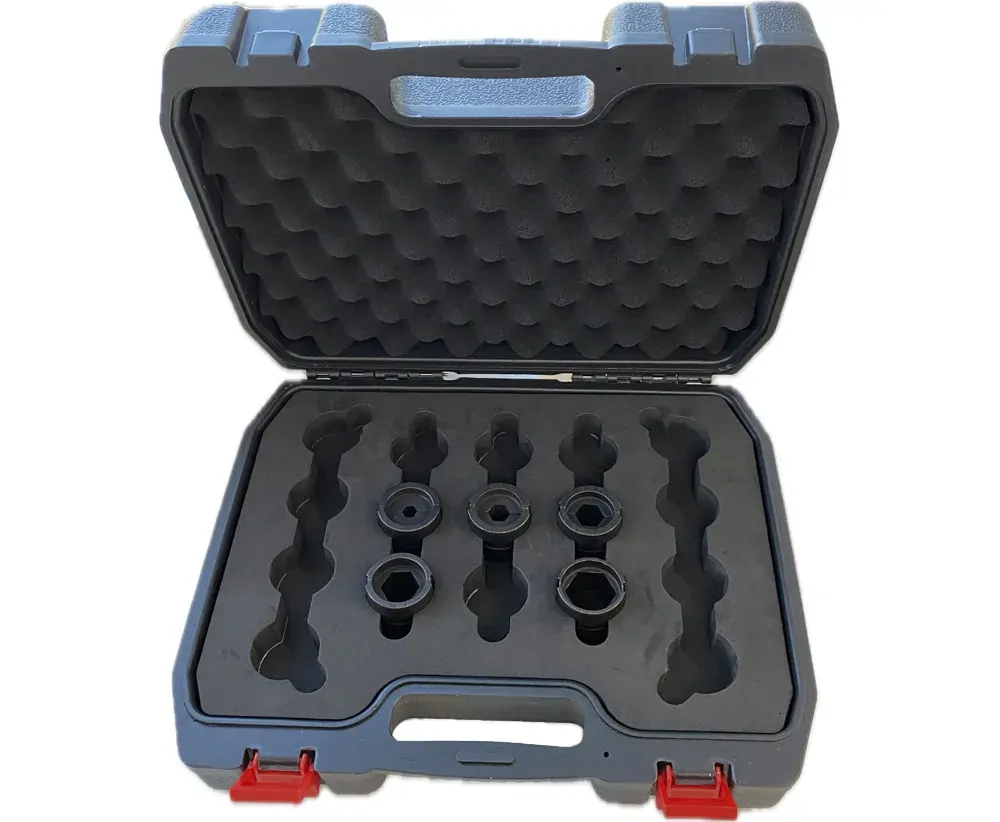

The CABAC DIESET-13A is a 12/13 tonne crimping die set designed for aluminium conductors from 6mm² through to 300mm². Supplied in a moulded carry case with a fitted foam insert, the kit keeps the five included aluminium dies organised for transport, storage and field use with compatible 12/13 tonne crimping tools.

12/13 tonne crimping die set
Designed for aluminium conductors
Conductor range 6-300mm²
Suitable for compatible 12/13 tonne crimping tools
Includes 5 aluminium dies
Includes HT-6/35AL die for 6-35mm² conductors
Includes HT-50/70AL die for 50-70mm² conductors
Includes HT-95/120AL die for 95-120mm² conductors
Includes HT-150/185AL die for 150-185mm² conductors
Includes HT-240/300AL die for 240-300mm² conductors
A/F sizes 9.0mm, 13.2mm, 17.3mm, 22.0mm and 28.4mm
Crimp widths 22mm and 18mm depending on die size
Supplied in moulded carry case
Fitted foam insert for organised storage
Carry case capacity up to 17 dies
Case dimensions 38 x 30 x 11cm
Suitable for field service and workshop use

Click here for Data Sheet

SKU	DIESET-13A
Brand	Cabac
