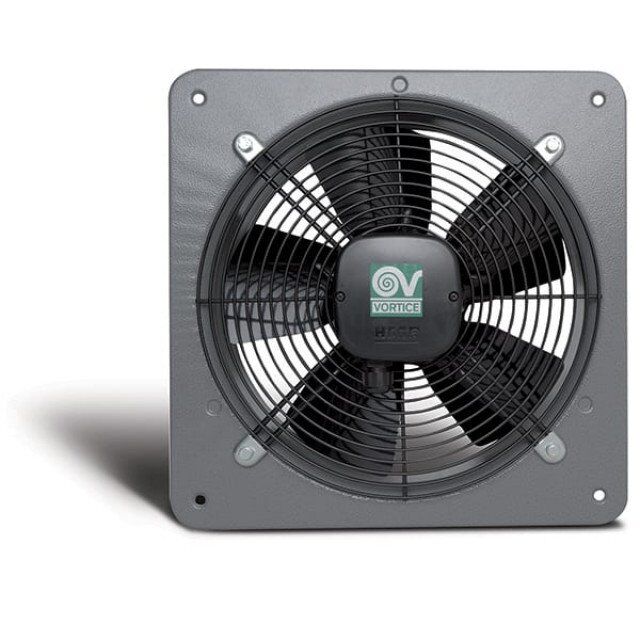

Allvent Vortice 450MM Plate Mounted Axial Fan

The Allvent Vortice A-E454M ALV42307 is a high-capacity plate mounted axial fan designed for commercial and industrial ventilation systems where strong, reliable air movement is required. Suitable for wall or panel mounting, it is ideal for warehouses, factories, workshops, plant rooms, mechanical service areas and industrial exhaust or supply air applications. Its compact black pressed steel panel, protective grille and aerodynamically contoured ventilation port give it a tough industrial finish, while the single phase motor, ball bearings and thermal overload protection make it a practical option for demanding ventilation installations.

  • Vortice A-E454M compact plate mounted axial fan
  • Designed for commercial and industrial ventilation applications
  • Suitable for wall or panel mounting
  • High airflow capacity of 5250m³/h or 1458L/s
  • 302W power rating and 1.35A current
  • 4 pole motor with 1400 RPM speed
  • Static pressure 127Pa
  • Noise level 54.8dBA
  • Maximum operating temperature 40°C
  • Black pressed steel panel with durable powder coated finish
  • 5 pressed steel blades with protective coating
  • Aerodynamically contoured ventilation port helps optimise airflow
  • Protective grille acts as an anti-bird guard and supports safer operation
  • Grille can be removed for easier cleaning and maintenance
  • Single speed single phase AC motor with ball bearings
  • Thermal overload protection

Click here for Data Sheet

SKU ALV42307
Brand Allvent
