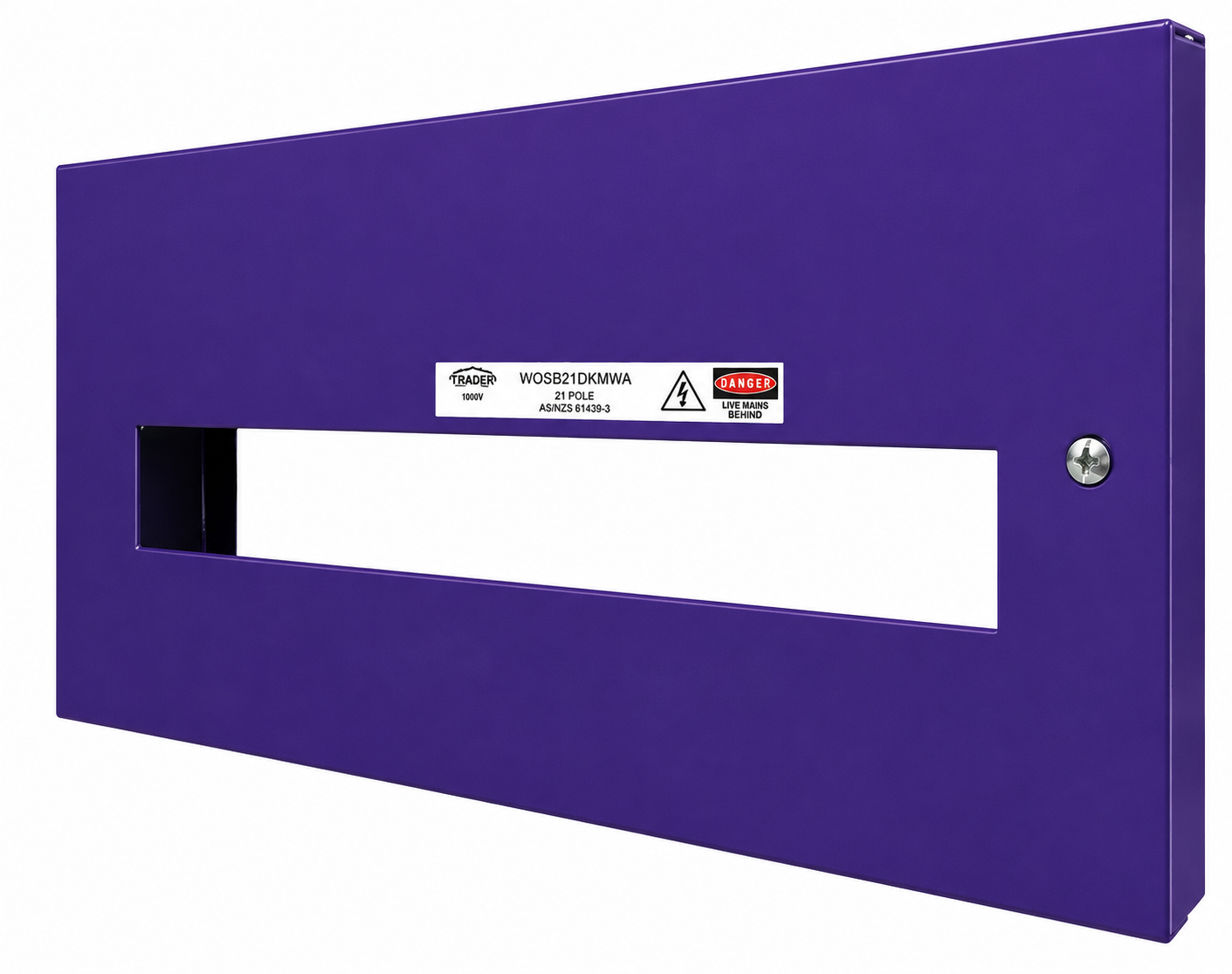

Trader Wolverine Switchboard 21 Way DIN Kit Metal Western Australia

The Trader Wolverine WOSB21DKMWA is a metal 21 way DIN switchboard kit designed specifically for Western Australia. The datasheet identifies it as a 21 pole DIN kit and notes generous earth and split neutral bars to assist with ease of wiring, with the bars set high in the chassis assembly for easier access. It also uses 6.3mm neutral bar terminal tunnels and 5mm earth terminal tunnels, making it a practical option for organised switchboard assembly work. This switchboard assembly is compliant with AS/NZS 61439-3 and is rated at 415V with a 100A assembly current rating. The datasheet lists a rated insulation voltage of 1000V, rated impulse withstand voltage of 4000V, rated peak withstand current of 17kA, and rated conditional short-circuit current of 10kA. It has a rated diversity factor of 0.6, a rated frequency of 50Hz, IP2X protection, and is noted as suitable for both indoor and outdoor installation as a stationary assembly intended for skilled persons. The sheet also notes that the housing and cover assembly are earthed through the earth bar.

21 way DIN kit
Metal switchboard
For Western Australia only
Generous earth bar
Split neutral bars included
Bars set high in chassis for easier access
Neutral bar terminal tunnels 6.3mm diameter
Earth bar terminal tunnels 5mm diameter
Compliant with AS/NZS 61439-3
Rated voltage 415V
Rated operational voltage 415V
Rated insulation voltage 1000V
Rated impulse withstand voltage 4000V
Rated current of assembly 100A
Rated peak withstand current 17kA
Rated conditional short-circuit current 10kA
Rated diversity factor 0.6
Rated frequency 50Hz
Pollution degree 2
Suitable for indoor installation
Suitable for outdoor installation
Stationary assembly
Degree of protection IP2X
Intended for skilled persons
Housing and cover assembly earthed through earth bar
Cleaning guide recommends wiping with a damp or dry cloth only and avoiding sprays or harsh chemical cleaners

Click here for Data Sheet

SKU	WOSB21DKMWA
Brand	Trader
