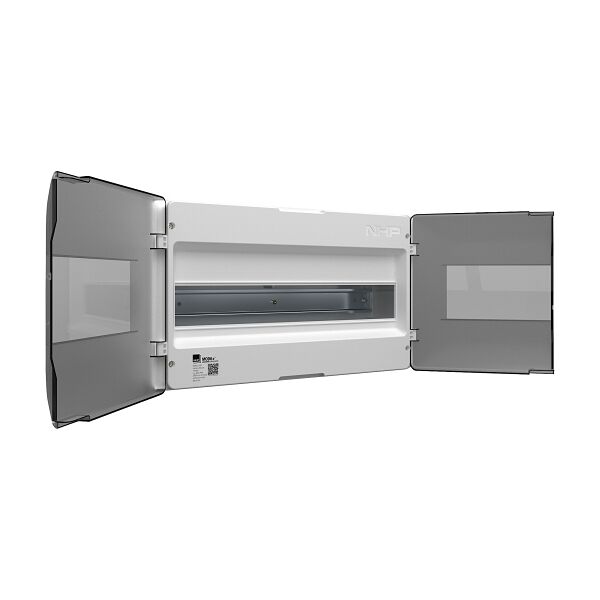

NHP MOD6+ Loadcentre Lightning 18-Way Surface Mount Transparent Door

The NHP MOD6+ MD6LL18ST is an 18-way surface-mounted loadcentre with a transparent door, designed as a compact distribution board for residential and light commercial applications. It is rated at 80A, supports up to 415V AC, and includes neutral and earth terminal blocks plus a DIN rail for efficient circuit protection installation.

Brand NHP
Series MOD6+ Loadcentres
Product type small distribution board
18 outgoing ways
18 poles at 18mm pitch
1 row
Rated current 80A
Maximum rated operating voltage 415V AC
Rated insulation voltage 500V
Neutral terminal block included
Earthing terminal block included
DIN rail included
Surface mounted
Suitable for plaster mounting
Transparent door
Door type cover
No lock
Plastic housing
White finish
RAL 9003
IP40 rated
Height 220mm
Width 383mm
Depth 100.5mm
Suitable for residential applications
Suitable for light commercial applications
Part of the MOD6+ circuit protection family
Designed for fast and efficient installation
Compatible with optional MOD6+ loadcentre accessories

Click here for Data Sheet

SKU	MD6LL18ST
Brand	NHP

Be The First To Review This Product!

Help other Alstra Electrical Wholesalers users shop smarter by writing reviews for products you have purchased.

Write a product review
