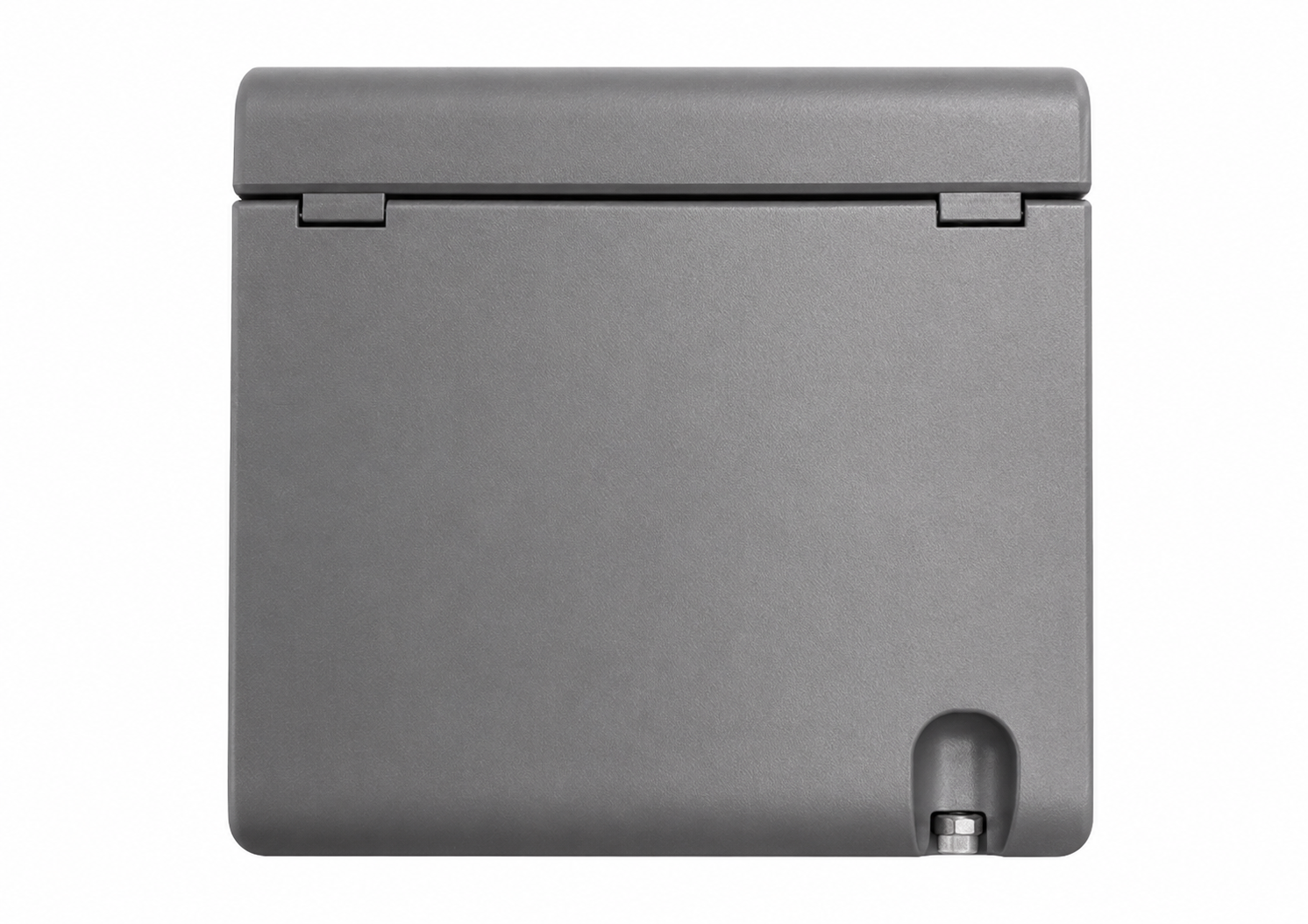

Trader Wolverine Surface Mount Weatherproof Metal Switchboard 10 Way 100A IP65 Grey
The Trader Wolverine WOSBWPM10 is a weatherproof metal switchboard designed for outdoor surface mounting in domestic and commercial applications. The datasheet lists it as a 10 way enclosure rated at 100A and 415V AC, built to accommodate circuit protection devices such as circuit breakers, RCDs, isolating switches and surge or over-voltage protection devices. It is designed for outdoor use only and must be installed by a licensed electrician in accordance with AS/NZS 3000 wiring rules. This enclosure complies with AS/NZS 61439.3 and is rated IP65 from the front surfaces when mounted to AS 60529. The datasheet also lists a 100A rated assembly, Class 2 assembly construction, rated insulation voltage of 1000V, rated impulse withstand voltage of 4000V, rated peak withstand current of 17kA and rated conditional short-circuit current of 10kA. It includes neutral and earth bars with a single row of screws, and the parts pack includes an 80A rated busbar, red and green sticker labelling pack for non-RCD and RCD protected circuit identification, plus full and half DIN pole fillers.
- 10 way weatherproof metal switchboard
- Surface mount design
- Outdoor use only
- Grey finish
- 100A rated assembly
- 415V AC rated voltage
- Rated operational voltage 415V
- Rated insulation voltage 1000V
- Rated impulse withstand voltage 4000V
- IP65 rated from front surfaces when mounted to AS 60529
- Complies with AS/NZS 61439.3
- Class 2 assembly
- Rated peak withstand current 17kA
- Rated conditional short-circuit current 10kA
- Rated diversity factor 1–0.9
- Rated frequency 50Hz
- Pollution degree 2
- Mechanical impact protection IK07
- Type B distribution board
- Suitable for circuit breakers
- Suitable for RCDs
- Suitable for isolating switches
- Suitable for surge and over-voltage protection devices
- Includes neutral and earth bars
- Single row of screws on neutral and earth bars
- Includes 80A rated busbar in parts pack
- Includes red and green sticker labelling pack
- Includes full and half DIN module pole fillers
- Neutral link rating 100A
- Loose busbar rating 80A end fed or 100A centre feed
- Fixed stationary installation
- Dimensions 243mm x 232mm x 100mm
- Weight 2.09kg
- Must be installed by a licensed electrician
| SKU | WOSBWPM10 |
| Brand | Trader |
