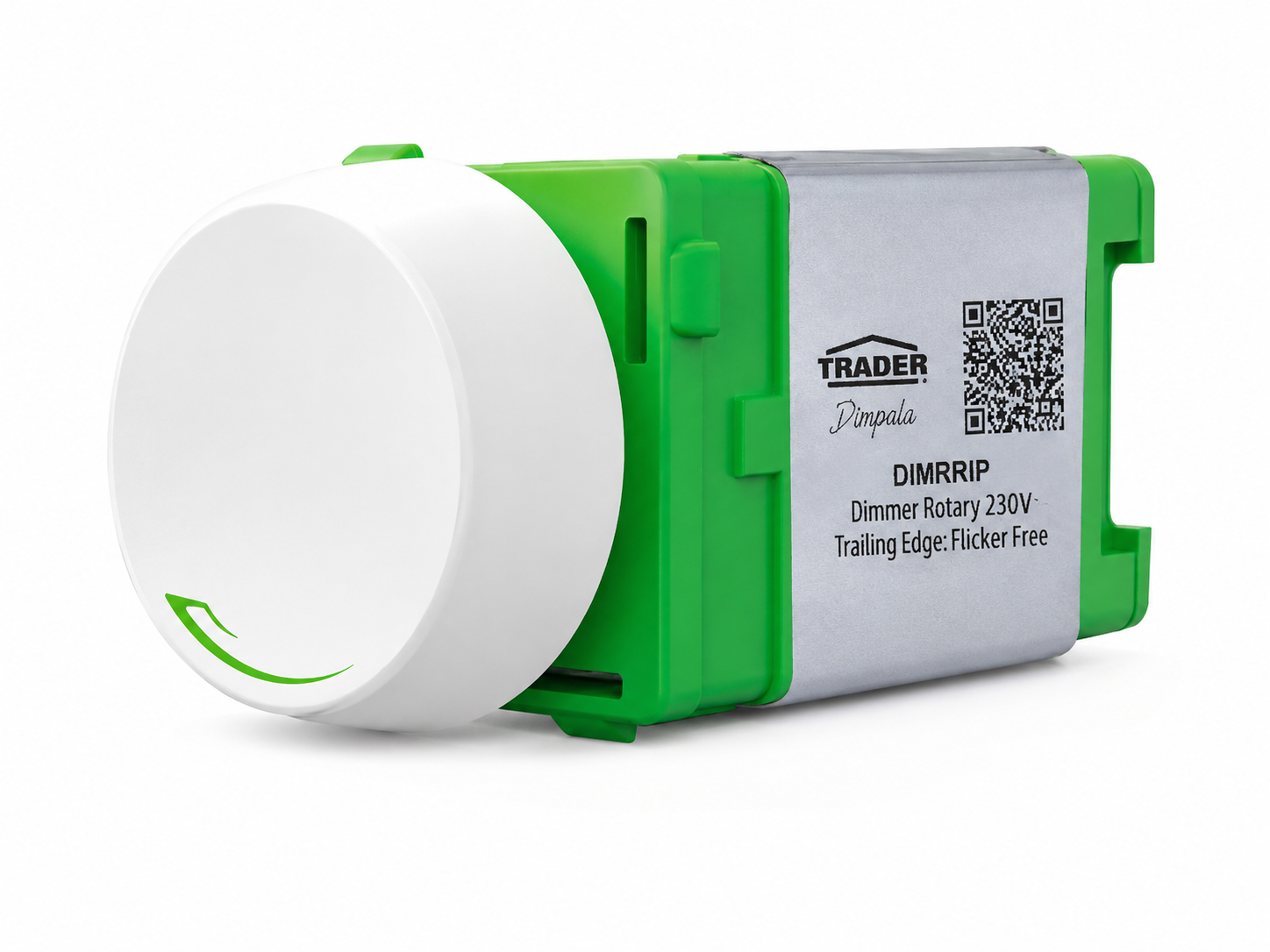

Trader Dimpala 250W Trailing Edge LED Dimmer with Ripple Tone Rejection

The Trader Dimpala DIMRRIP is a trailing edge rotary dimmer designed to deliver smooth, flicker-free control of dimmable LED lighting, with ripple tone rejection helping reduce unwanted brightness fluctuations caused by mains ripple signals. Its two-wire phase control design requires no neutral connection, making it a practical option for retrofit installations in existing homes as well as new residential and commercial projects. With a low 2W minimum load, soft start operation and dimming down to almost zero on compatible loads, it is well suited to living rooms, bedrooms, dining areas, kitchens, offices and other spaces where stable, precise lighting control is important.

  • Trailing edge rotary dimmer
  • Ripple tone rejection for flicker-free dimming
  • Optimised for dimmable LED lamps and drivers
  • Two-wire phase control design
  • No neutral connection required
  • Suitable for retrofit wall plate installations
  • Operating voltage 220-240Vac
  • Frequency 50Hz nominal, 47-53Hz
  • Minimum load 2W
  • Dimming range less than 1% to greater than 95%, load dependent
  • Minimum brightness typically 0%
  • Maximum dimmable LED driver load 250W
  • Maximum dimmable LED lamp load 250W
  • Maximum electronic transformer load 300W
  • Maximum standard iron-core transformer load 250W
  • Maximum toroidal iron-core transformer load 250W
  • Maximum incandescent load 300W
  • Maximum dimmable CFL load 150W
  • Soft start helps prolong lamp and driver life
  • Mechanical minimum brightness adjustment
  • Inherent immunity to installation wiring short circuit faults
  • Fits Australian wall switch plate apertures including Trader, HPM and Clipsal
  • Multiple knob styles and finishes available
  • Not suitable for fans or motors

Click here for Data Sheet



SKU DIMRRIP
