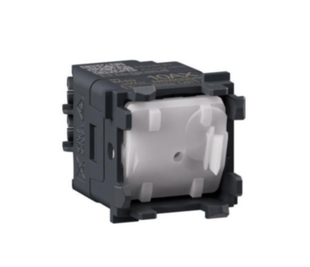

Legrand Inspyra 10A Spring-Return SPDT Switch Mechanism

The Legrand Inspyra NR809000 is a 10A spring-return SPDT switch mechanism designed for reliable momentary switching within the Inspyra modular platform. Its automatic return action makes it suitable for specialised control, signalling and switching functions, with optional LED orientation lighting and compatibility with Inspyra grids and coverplates.

Brand Legrand
Series Inspyra
10A spring-return SPDT switch mechanism
Momentary switching operation
Automatic spring-return action
SPDT switching
Reverser wiring system
Rocker/button operation
1 rocker
10A rated current
240V nominal voltage
AC operation
50-60Hz frequency
Designed for specialised control applications
Suitable for signalling functions
Suitable for switching functions requiring automatic return
Flush-mounted installation
Snap fastening
Screwed terminal connection
Terminal capacity 0.75-4mm²
Suitable for flexible cable
No mandatory neutral
Optional LED orientation lighting
Non-replaceable LED
Compatible with Inspyra grids
Compatible with Inspyra coverplates
Plastic construction
Thermoplastic material
Untreated matt finish
Grey finish
RAL colour reference similar to 7016
IP2X rated
IK04 impact resistance
24mm wide
24mm high
32mm deep
25mm built-in depth
Minimum installation box depth 25mm
Operating temperature 0-40°C
Storage temperature -5-50°C

Click here for Data Sheet

SKU	NR809000
Brand	Legrand
