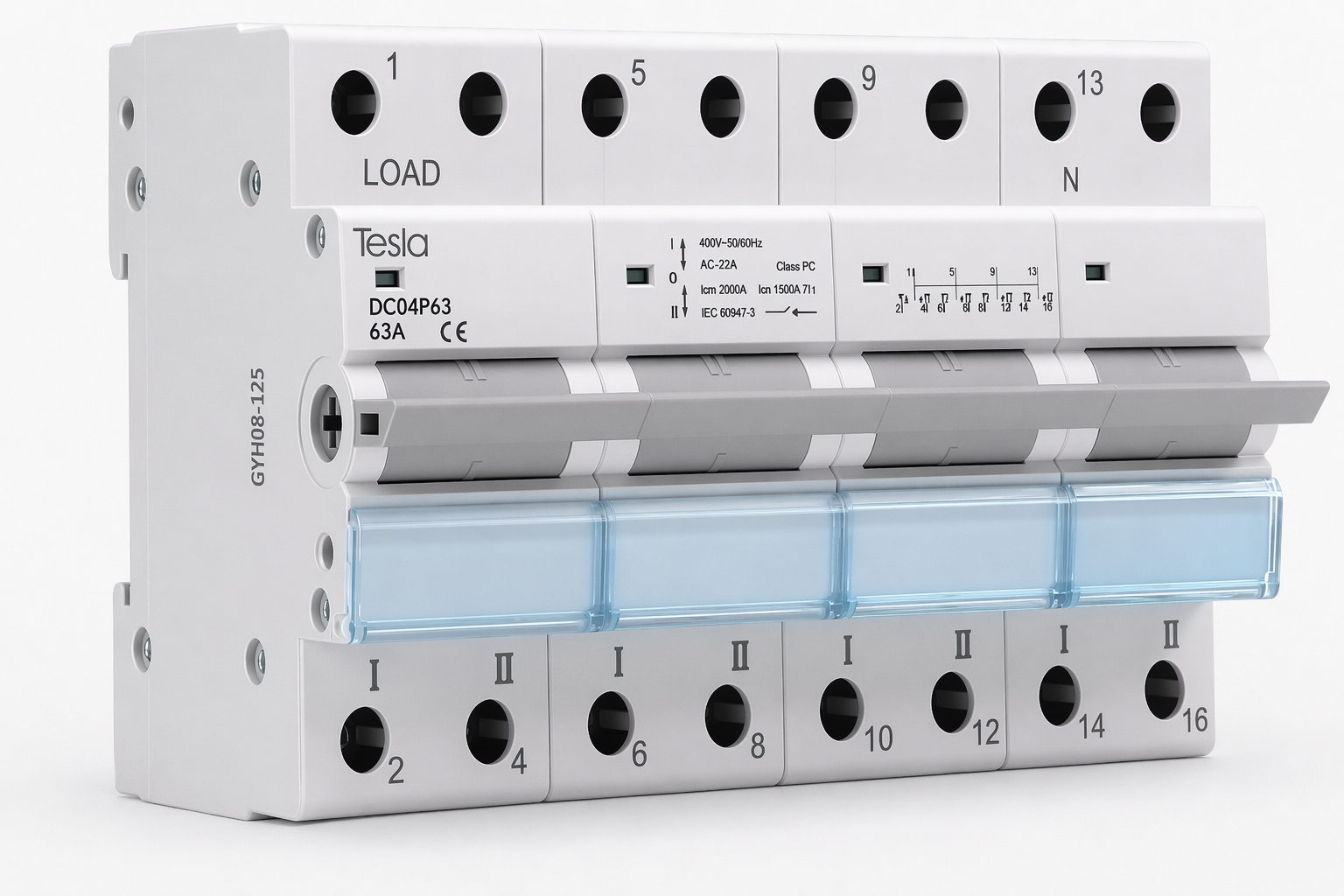

Tesla 63A 4 Pole Off Load Changeover Switch Din Rail

The Tesla TESDCO4P63A is a heavy duty 4 pole off load changeover switch designed for reliable manual switching in DIN rail electrical installations. Rated at 63A and 400V, this changeover switch is suited to switchboards and control applications where a robust off load transfer solution is required. Its 4 pole configuration makes it a practical choice for installations needing dependable manual changeover in larger electrical systems. Built to IEC 60947-3, the TESDCO4P63A features IP20 protection, a mechanical life of 10,000 cycles and terminal sizing suited to 25mm cable. It is designed for mounting on a 35mm DIN rail and has dimensions of 75mm deep, 85mm high and 144mm wide, making it suitable for integration into standard DIN rail assemblies. The product sheet also clearly states that this is an off load changeover switch, so all circuits must be unloaded before operating the switch in any position.

  • 4 pole design
  • 63A rated current
  • 400V rated voltage
  • 50/60Hz frequency
  • Built to IEC 60947-3
  • IP20 protection rating
  • Mechanical life 10000 cycles
  • Terminal size 25mm
  • Mounts on 35mm DIN rail
  • Dimensions 75mm deep x 85mm high x 144mm wide
  • Operating temperature -20°C to 50°C
  • Off load operation only
  • All circuits must be unloaded before switching

Click here for Data Sheet

SKU TESDCO4P63A
Brand Telsa
