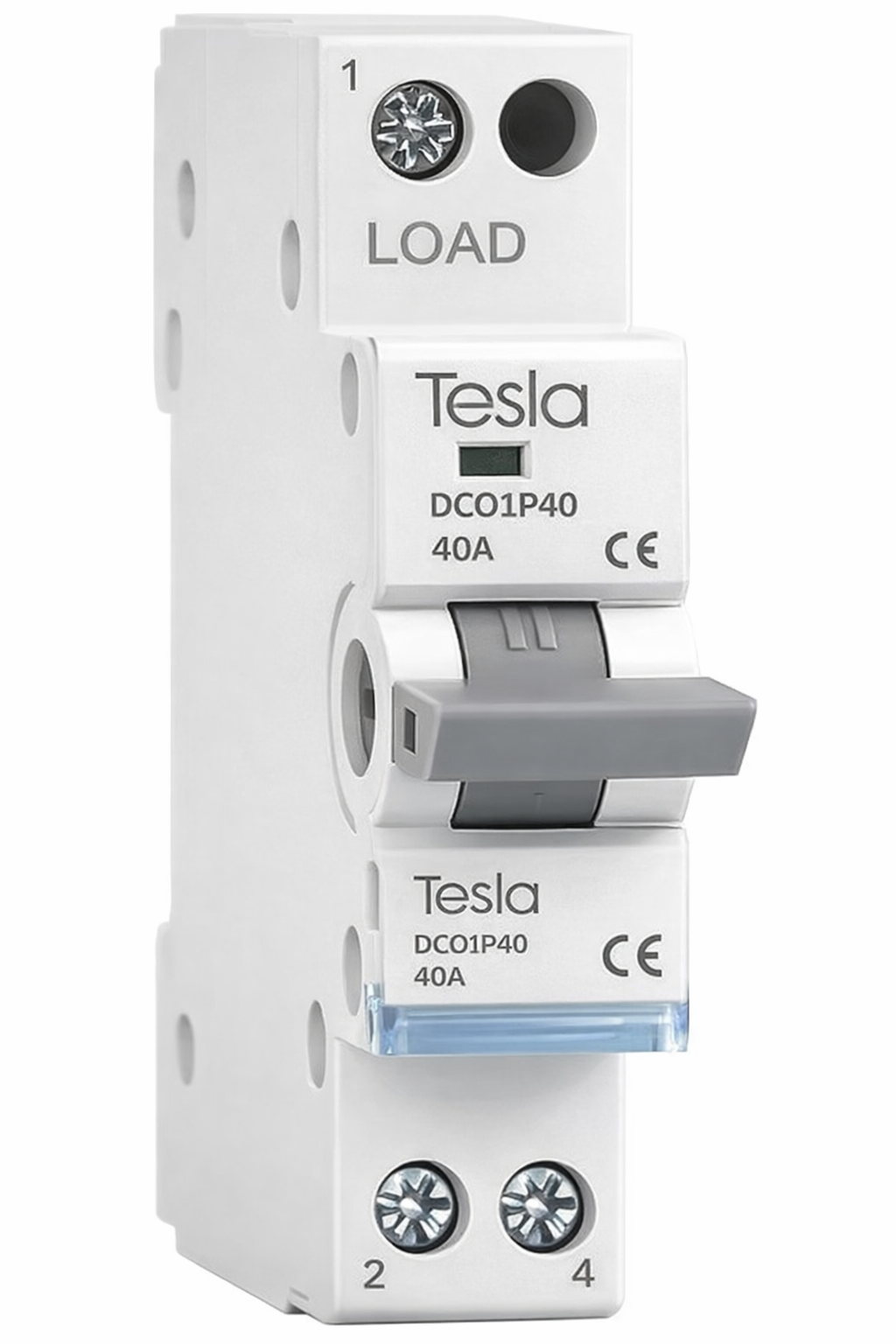

Tesla 40A 1 Pole Off Load Changeover Switch Din Rail

The Tesla TESDCO1P40A is a compact 1 pole off load changeover switch designed for reliable manual switching in DIN rail electrical installations. Rated at 40A and 230V, this changeover switch is suited to applications where a simple and dependable off load transfer solution is required. Designed for mounting on a 35mm DIN rail, it offers a practical option for switchboard and control panel installations where space efficiency and straightforward installation are important. Built to IEC 60947-3, the TESDCO1P40A features IP20 protection, a mechanical life of 10,000 cycles and a terminal size suited to 10mm cable. Its compact dimensions of 75mm deep, 85mm high and 18mm wide make it easy to integrate into standard DIN rail assemblies. As shown in the wiring and usage notes, this is an off load changeover switch and all circuits must be unloaded before operating the switch in any position.

  • 1 pole design
  • 40A rated current
  • 230V rated voltage
  • 50/60Hz frequency
  • Built to IEC 60947-3
  • IP20 protection rating
  • Mechanical life 10000 cycles
  • Terminal size 10mm
  • Mounts on 35mm DIN rail
  • Dimensions 75mm deep x 85mm high x 18mm wide
  • Operating temperature -5°C to 50°C
  • Off load operation only
  • All circuits must be unloaded before switching

Click her for Data Sheet



SKU TESDCO1P40A
Brand Telsa
