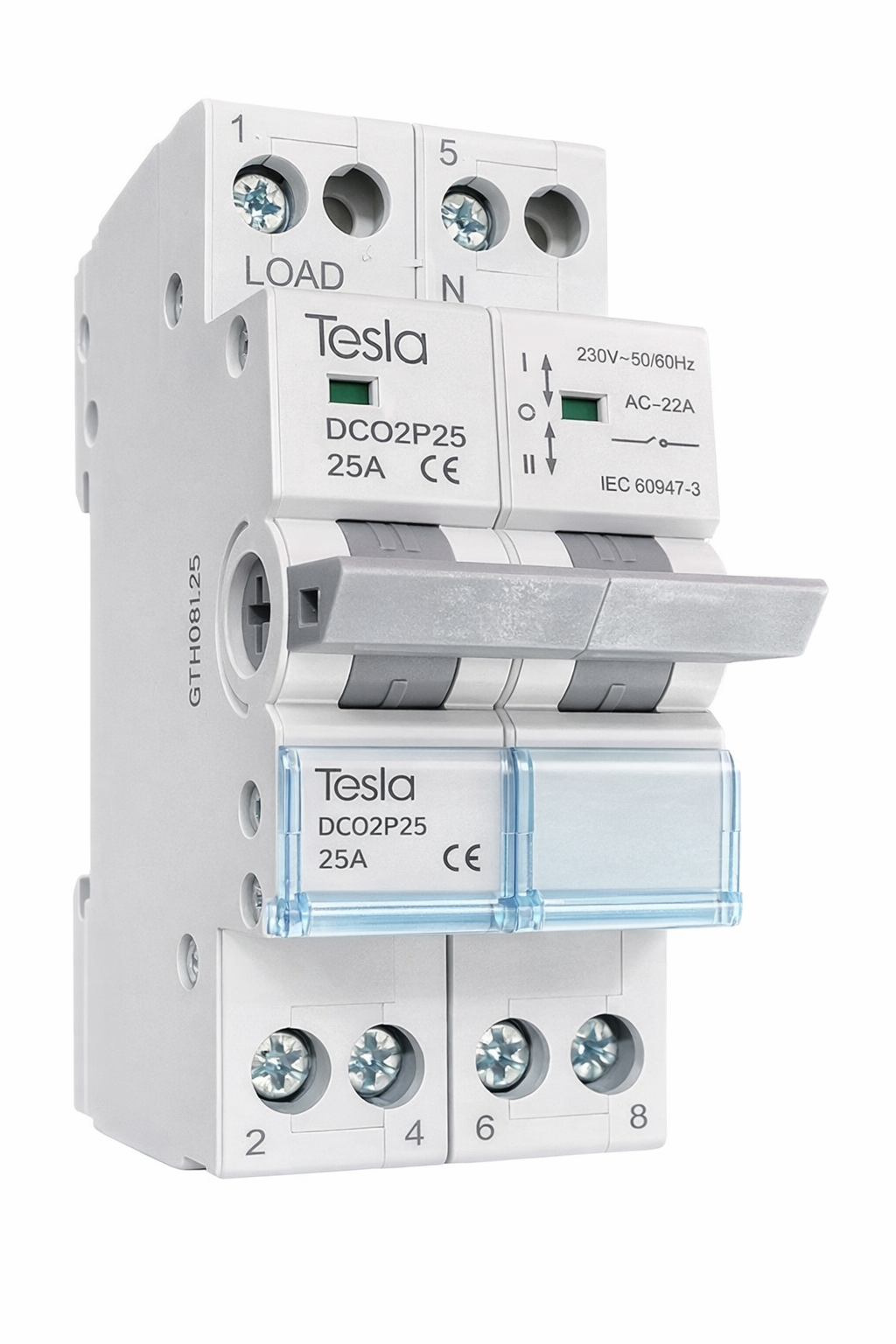

Tesla 25A 2 Pole Off Load Changeover Switch Din Rail

The Tesla TESDCO2P25A is a compact 2 pole off load changeover switch designed for reliable manual switching in DIN rail electrical installations. Rated at 25A and 230V, this changeover switch is suited to applications where a dependable off load transfer solution is required in switchboards and control panels. Its 2 pole design makes it a practical choice for installations needing controlled manual changeover in a compact DIN rail format. Built to IEC 60947-3, the TESDCO2P25A features IP20 protection, a mechanical life of 10,000 cycles and terminal sizing suited to 10mm cable. It is designed for mounting on a 35mm DIN rail and has compact dimensions of 75mm deep, 85mm high and 35mm wide, making it easy to integrate into standard assemblies. The product sheet also clearly states that this is an off load changeover switch, so all circuits must be unloaded before the switch is operated in any position.

  • 2 pole design
  • 25A rated current
  • 230V rated voltage
  • 50/60Hz frequency
  • Built to IEC 60947-3
  • IP20 protection rating
  • Mechanical life 10000 cycles
  • Terminal size 10mm
  • Mounts on 35mm DIN rail
  • Dimensions 75mm deep x 85mm high x 35mm wide
  • Operating temperature -5°C to 50°C
  • Off load operation only
  • All circuits must be unloaded before switching

Click here for Data Sheet

SKU TESDCO2P25A
Brand Telsa
