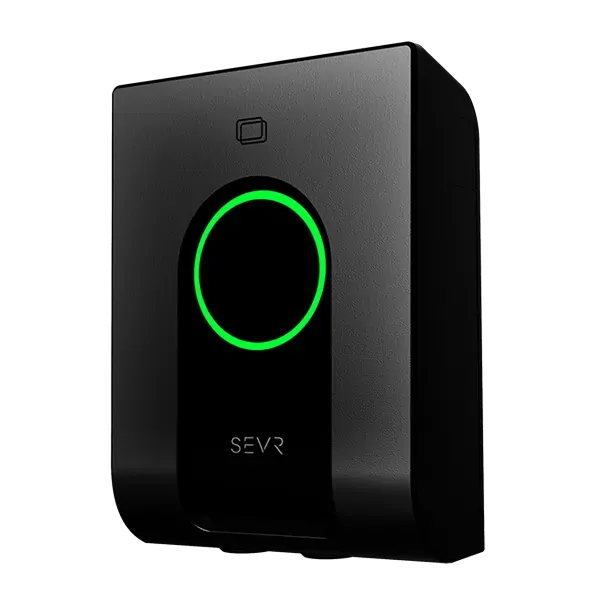

SEVR OPTI 22kW Three Phase Smart EV Charger Type 2

The SEVR OPTI SV-EVCHG-22KW-B is a 22kW three-phase AC EV charger designed for residential and commercial electric vehicle charging where a suitable three-phase supply is available. It features a Type 2 charging socket and supports Bluetooth, Wi-Fi, 4G and Ethernet connectivity, providing flexible options for connected EV charging installations. With a compact IP65-rated enclosure, 32A output and wall or pole mounting capability, it is a powerful option for homes, workplaces and commercial sites requiring faster three-phase EV charging.

  • Series OPTI
  • 22kW AC EV charger
  • Three-phase operation
  • 400V AC
  • 32A output current
  • 50/60Hz
  • Type 2 charging socket
  • Bluetooth connectivity
  • Wi-Fi connectivity
  • 4G connectivity
  • Ethernet connectivity
  • IP65 rated
  • Driver efficiency under full load ≥99%
  • Type A 30mA + DC 6mA earth leakage protection specification
  • Operating temperature -30°C to +50°C
  • Dimensions 200mm W x 265mm H x 86mm D
  • Weight 2.43kg
  • Wall-mounted or pole-mounted installation
  • Recommended cable 5 x 6mm² + 1 x 0.5mm²
  • Includes 2 RFID cards
  • Includes installation kit
  • Includes mounting bracket and hardware kit
  • Includes instruction manual
  • 3-year warranty
  • Suitable for residential three-phase EV charging
  • Suitable for workplace and commercial EV charging applications

Click here for Data Sheet

SKU SV-EVCHG-22KW-B
Brand Sevr
