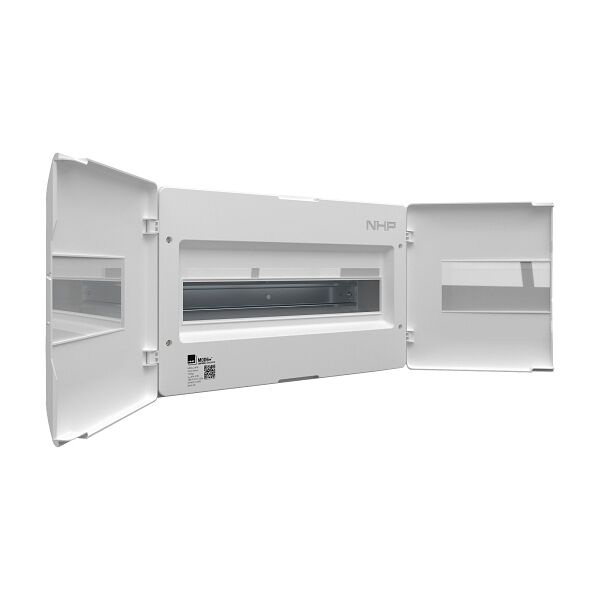

NHP MOD6+ Loadcentre Lightning 18-Way Flush Mount White Door

The NHP MOD6+ MD6LL18FW is an 18-way flush-mounted loadcentre with a solid white door, designed as a compact distribution board for residential and light commercial applications. It is rated at 80A, supports up to 415V AC, and includes neutral and earth terminal blocks plus a DIN rail for efficient circuit protection installation.

Brand NHP
Series MOD6+ Loadcentres
Product type small distribution board
18 outgoing ways
18 poles at 18mm pitch
1 row
Rated current 80A
Maximum rated operating voltage 415V AC
Rated insulation voltage 500V
Neutral terminal block included
Earthing terminal block included
DIN rail included
Flush mounted
Suitable for plaster mounting
White door
Non-transparent door
Door type cover
No lock
Plastic housing
White finish
RAL 9003
IP40 rated
Height 250mm
Width 430mm
Depth 100mm
Wall cut-out 396 x 216mm
Suitable for residential applications
Suitable for light commercial applications
Part of the MOD6+ circuit protection family
Designed for fast and efficient installation
Compatible with optional MOD6+ loadcentre accessories

Click here for Data Sheet

SKU	MD6LL18FW
Brand	NHP
