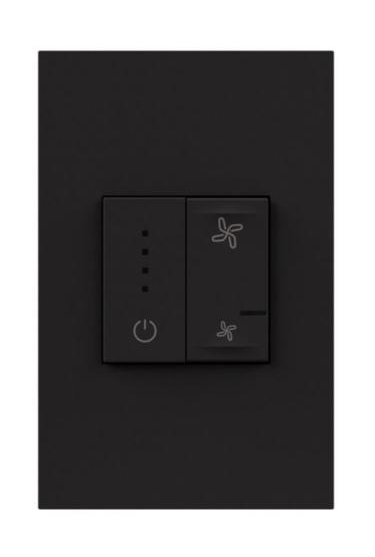

Legrand Inspyra with Netatmo 2 Module Smart Fan Controller Mechanism Matte Black

The Legrand Inspyra with Netatmo NS504002 is a 2 module smart fan controller mechanism finished in matte black, designed for connected control of compatible AC ceiling fans within the Inspyra Smart ecosystem. It supports integrated on/off control and four fan speeds for AC ceiling fans up to 100W, with LED indicators providing clear feedback on speed and configuration status. Control is available by manual press, app or compatible voice command, with an Inspyra Gateway required for connected functionality.

Brand Legrand
Series Inspyra with Netatmo
2 module smart fan controller mechanism
Matte black finish
Designed for compatible AC ceiling fans
Supports AC ceiling fans up to 100W
Integrated on/off control
4-speed fan control
LED fan speed indicators
LED configuration status indicators
Manual control
App-based control
Voice command control
Compatible with Inspyra Smart ecosystem
Requires Inspyra Gateway for connected functionality
Compact 2 module mechanism
Compatible with standard grid configurations
Changeable plates
Suitable for living spaces
Suitable for bedrooms
Suitable for homes
Suitable for multi-residential environments
Suitable for connected ceiling fan automation
Relay model
Universal and LED Retrofit load type
1 channel
230V nominal voltage
50-60Hz frequency
2.2A rated current
0-500W switch capacity
Mandatory neutral
Flush-mounted installation
Screw mounting
Screwed terminal connection
4 terminals
Terminal capacity 1.5-4mm²
Compatible with Apple HomeKit
Compatible with Google Assistant
Compatible with Amazon Alexa
Compatible voice assistant Apple Siri
Zigbee operating method
Programmable
Connected object
Internet box connectivity supported
Smartphone app programming
Compatible with Home + Control app
Plastic construction
Thermoplastic material
Lacquered matt finish
Black finish
RAL colour reference similar to 9017
IP20 rated
IK04 impact resistance

Click here for Data Sheet

SKU	NS504002
Brand	Legrand
