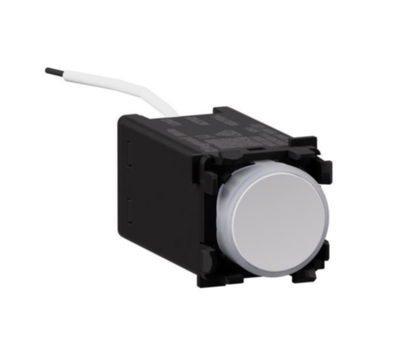

Legrand Inspyra 3-Wire 5A Hour/Minute Timer Switch Mechanism White

The Legrand Inspyra NR810001 is a 3-wire 5A electronic timer switch mechanism designed for automatic timed control of connected loads within the Inspyra modular platform. Its adjustable timing range from 1 minute to 24 hours makes it suitable for lighting, exhaust fans and other timed switching applications, while an illuminated indicator assists with status identification and visibility in low-light conditions.

Brand Legrand
Series Inspyra
3-wire electronic timer switch mechanism
5A rated current
White finish
Adjustable timing from 1 minute to 24 hours
Time setting range 1-1440 minutes
1 normally open contact
No normally closed contact
No change-over contact
Electronic operation
Illuminated indicator
Suitable for lighting applications
Suitable for exhaust fan applications
Suitable for timed control applications
Suitable for residential environments
Suitable for light commercial environments
Compatible with Inspyra grids
Compatible with Inspyra coverplates
Flush-mounted installation
240V nominal voltage
50Hz frequency
0.8W power consumption
Screwed terminal connection
3 terminals
Terminal capacity 1-2.5mm²
Suitable for flexible or rigid conductors
Plastic construction
Thermoplastic material
Untreated matt finish
RAL colour reference similar to 9003
IP2X rated
IK04 impact resistance
22mm wide
22mm high
50mm deep
42mm built-in depth
Minimum installation box depth 50mm
Operating temperature 0-35°C
Storage temperature -5-50°C

Click here for Data Sheet

SKU	NR810001
Brand	Legrand
