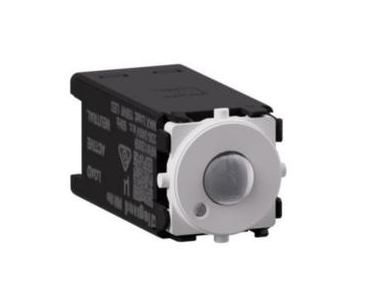

Legrand Inspyra 2.5A PIR Sensor Mechanism

The Legrand Inspyra NR812009 is a 2.5A PIR motion sensor mechanism designed for automatic lighting control within the Inspyra modular platform. Using passive infrared motion detection, it can switch connected lighting based on occupancy, helping improve convenience and reduce unnecessary energy use in areas such as corridors, passageways, bathrooms, laundries and utility spaces. It is supplied with white, black and grey mechanism covers for flexible integration with different Inspyra finishes.

Brand Legrand
Series Inspyra
2.5A PIR sensor mechanism
Passive infrared motion detection
Automatic lighting control
Motion-activated switching
Supplied with white, black and grey mechanism covers
Suitable for passageways
Suitable for corridors
Suitable for bathrooms
Suitable for laundries
Suitable for utility areas
Suitable for residential environments
Suitable for commercial environments
Suitable for hospitality environments
Compatible with Inspyra grids
Compatible with Inspyra coverplates
40° scan angle
Optimum mounting height 1.2m
Maximum sideways detection reach 5m
Maximum frontal detection reach 5m
Adjustable luminosity response
Luminosity setting range 1-2000 lux
Minimum switch-on time 5 seconds
Maximum duty cycle 30 minutes
Maximum switching power 600W
Maximum LED switching power 150W
Suitable for C-loads
Staircase light controller function
Flush-mounted installation
Suitable for wall mounting
Screwed terminal connection
230-240V AC operation
50Hz frequency
Mandatory neutral
Thermoplastic construction
Matt finish
IP2X rated
IK04 impact resistance

Click here for Data Sheet

SKU	NR812009
Brand	Legrand
