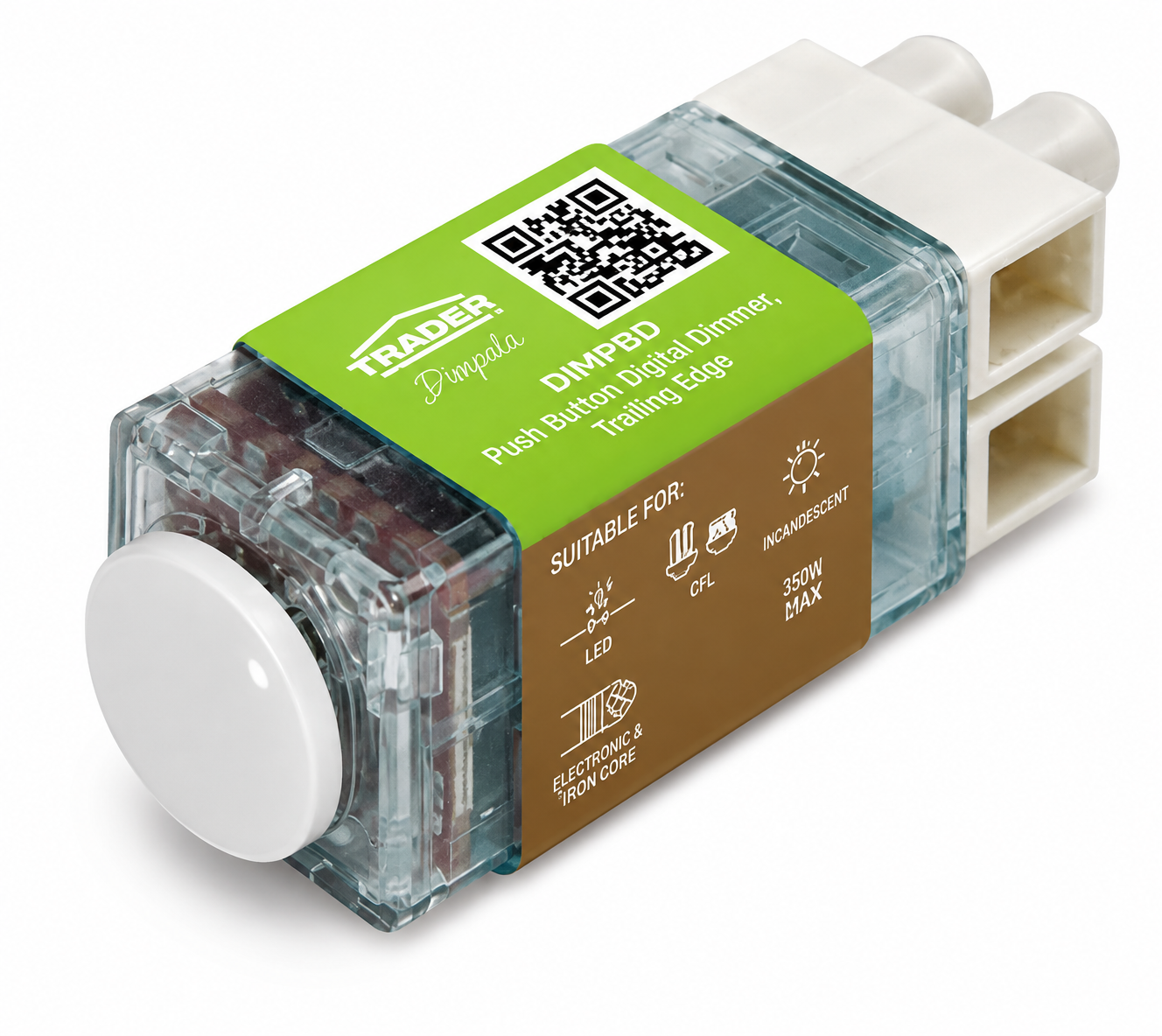

Trader Dimpala 350W Push Button Digital Trailing Edge LED Dimmer

The Trader Dimpala DIMPBD is a push button digital trailing edge dimmer that combines dimming and ON/OFF switching in a single compact mechanism, making it a flexible choice for modern residential and commercial lighting. Designed primarily for dimmable LED loads, it offers deep dimming, programmable minimum brightness and smooth linear response, while multi-way dimming and switching can be achieved when paired with the MEPBMW remote unit. It is a practical option for living rooms, bedrooms, kitchens, dining areas, hallways, offices and other spaces where simple push button operation and precise lighting control are preferred.

Push button digital dimmer
Integrated ON/OFF switch
Trailing edge dimming
Linear dimming response
Designed for dimmable LED lighting
Deep dimming to zero on most compatible lamps
Programmable minimum brightness
Multi-way dimming and switching when used with MEPBMW remote unit
Double tap when ON gradually dims lights to OFF over 30 minutes
Double tap when OFF turns lights on at previous level and ramps to full brightness over 30 minutes
Restarts in OFF position after power loss
Retains programmed settings after power loss
Improved ripple tone filtering
Over current protection
Over voltage protection
Over temperature protection
Configurable illuminated LED
Operating voltage 230-240Vac 50Hz
Maximum load 350W
Minimum load 1W
Maximum current capacity 1.5A
Flying lead connection with bootlace terminals
Operating temperature 0°C to 50°C
Certified to AS/NZS 60669.2.1 and CISPR15
Suitable for Trader and Clipsal wall plates
Supplied with gloss white and gloss black buttons
Suitable for Puma, Cougar and Flat Cat gloss finishes
Additional white, black, silver, matt white and matt black button options available
Not suitable for fans or motors

Click here for Data Sheet

SKU	DIMPBD
Brand	Trader
