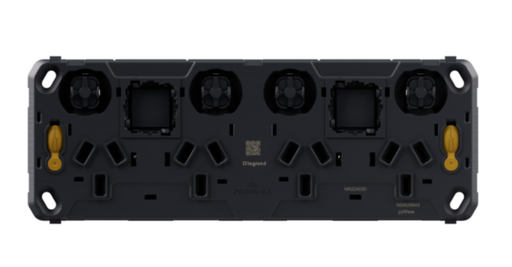

Legrand Inspyra 10A Quad Power Point Grid with 2 Extra Function Holes

The Legrand Inspyra NR224030 is a 10A quad power point grid with two extra function holes, designed to provide four power outlets plus provision for additional compatible devices within the Inspyra system. The extra function positions can accommodate options such as USB charging or isolated switching modules, while the final coverplate is selected separately to complete the installation.

Brand Legrand
Series Inspyra
10A quad power point grid
Grid-only format
Quad outlet configuration
2 extra function holes
Supports compatible USB charging modules
Supports compatible isolated switching modules
Integrated power and switch mechanisms
Coverplate required to complete installation
Horizontal mounting
AS/NZS 3112 Type I
4 socket outlets
4 switchable socket outlets
10A nominal current
240V nominal voltage
50-60Hz frequency
Screwed terminal connection
Angled screw terminal access
Enclosed terminals
Enhanced contact protection
Insulated mounting
Plastic construction
Thermoplastic material
Matt surface finish
Mounting with screw
IP2X rated
IK07 impact resistance
198mm wide
74mm high
8mm deep
20mm built-in depth
Terminal capacity 1.5-6mm²
Loop through function
2 loop throughs
Operating temperature 0-40°C
Storage temperature -5-50°C

Click here for Data Sheet

SKU	NR224030
Brand	Legrand
