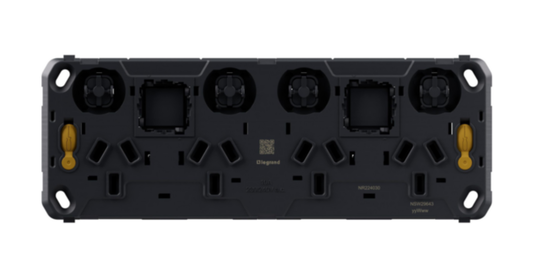

Legrand Inspyra 10A Quad Power Point Grid

The Legrand Inspyra NR224000 is a 10A quad power point grid designed as a configurable four-outlet base within the Inspyra system. Its grid-only format includes the integrated power and switch mechanisms, while the final coverplate is selected separately, providing flexible fit-out for living areas, work areas and other spaces requiring multiple power connections.

Brand Legrand
Series Inspyra
10A quad power point grid
Grid-only format
Quad outlet configuration
Integrated power and switch mechanisms
Coverplate required to complete installation
Suitable for living areas
Suitable for work areas
Suitable for shared spaces
Suitable for homes and apartments
Suitable for small business environments
Horizontal mounting
AS/NZS 3112 Type I
4 socket outlets
4 switchable socket outlets
10A nominal current
240V nominal voltage
50-60Hz frequency
Screwed terminal connection
Angled screw terminal access
Enclosed terminals
Captive screw design
Enhanced contact protection
Insulated mounting
Plastic construction
Thermoplastic material
Matt surface finish
Mounting with screw
IP2X rated
IK07 impact resistance
198mm wide
74mm high
8mm deep
20mm built-in depth
Terminal capacity 1.5-6mm²
Loop through function
2 loop throughs
Operating temperature 0-40°C
Storage temperature -5-50°C

Click here for Data Sheet

SKU	NR224000
Brand	Legrand
