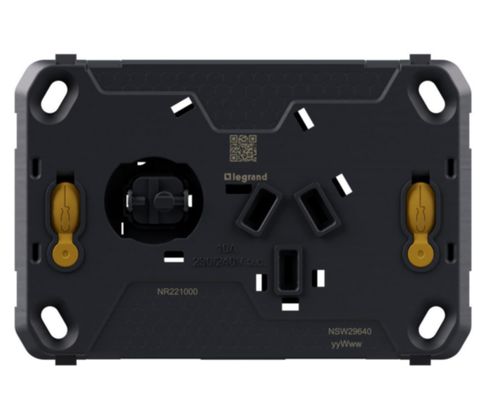

Legrand Inspyra 10A Horizontal Single Power Point Grid

The Legrand Inspyra NR221000 is a 10A horizontal single power point grid designed as a configurable outlet base within the Inspyra system. It includes the integrated power and switch mechanisms, while the final coverplate is selected separately, allowing the finish to be matched across the wider Inspyra range.

Brand Legrand
Series Inspyra
10A horizontal single power point grid
Grid-only format
Integrated power and switch mechanisms
Coverplate required to complete installation
Single outlet configuration
Horizontal mounting
AS/NZS 3112 Type I
1 socket outlet
1 switchable socket outlet
10A nominal current
240V nominal voltage
50-60Hz frequency
Screwed terminal connection
Angled screw terminal access
Captive screw design
Enhanced contact protection
Insulated mounting
Plastic construction
Thermoplastic material
Matt surface finish
Mounting with screw
IP2X rated
IK07 impact resistance
108mm wide
74mm high
8mm deep
20mm built-in depth
Terminal capacity 1.5-6mm²
Loop through function
2 loop throughs
Operating temperature 0-40°C
Storage temperature -5-50°C

Click here for Data Sheet

SKU	NR221000
