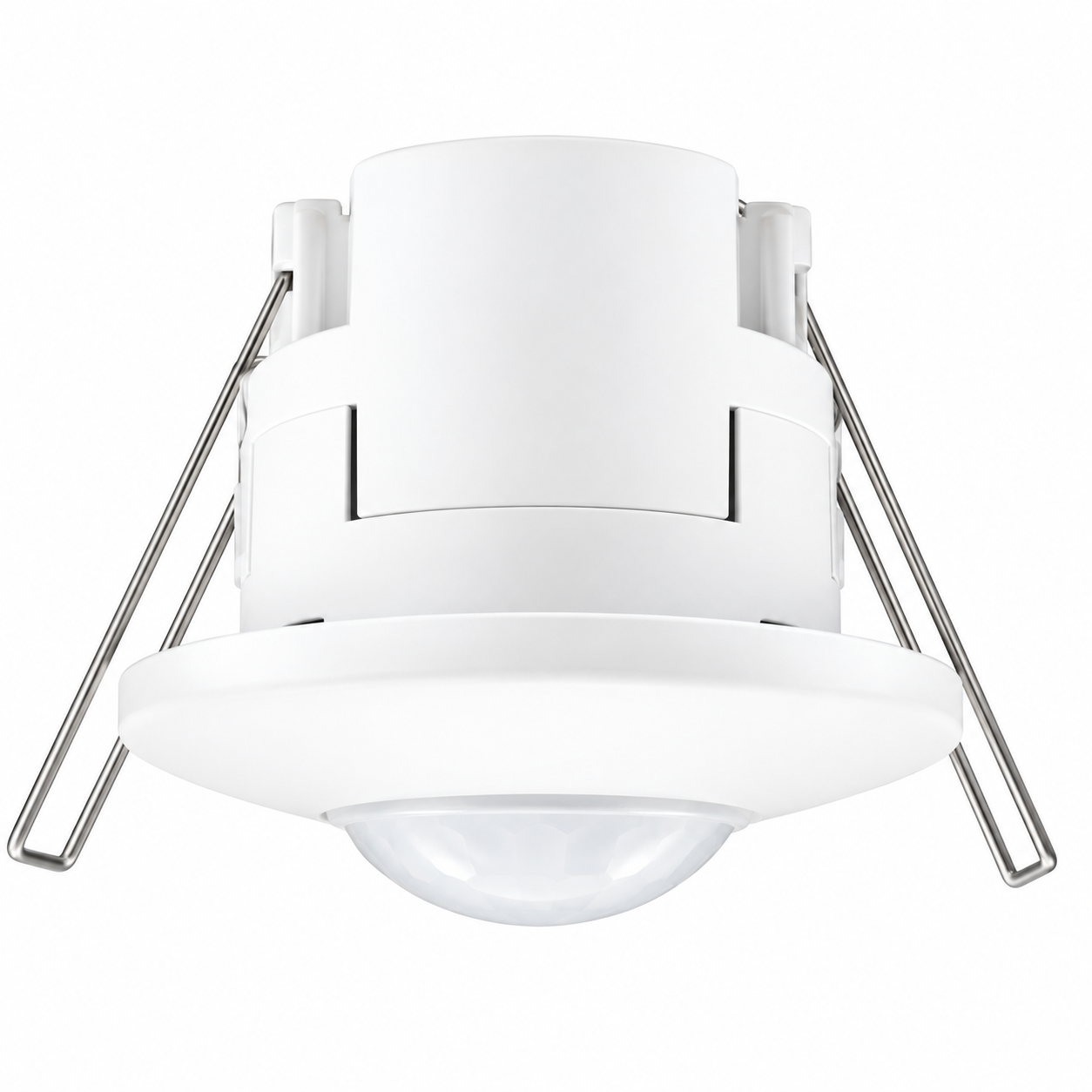

KASTA Sentura 360° Recessed or Surface Mount PIR Motion Sensor with Override White

The KASTA Sentura SEN-PIR360RC-SM-W is a versatile 360° PIR motion sensor that can be installed either recessed or surface mounted using the included mounting kit. It is designed to detect both small presence movements within the inner detection zone and larger movements in the outer zone, making it suitable for desk-based areas, corridors and general automatic lighting control.

  • Brand KASTA
  • Series Sentura
  • PIR motion sensor
  • White finish
  • 360° detection angle
  • Recessed or surface mount installation
  • Surface mounting kit included
  • Detects small presence movements in inner detection zone
  • Detects larger movements in outer detection zone
  • Suitable for desk-based presence detection
  • Suitable for corridors and larger areas
  • Adjustable lux setting
  • Adjustable time setting
  • Adjustable sensitivity setting
  • Detection range up to 6m
  • Installation height 2.2-4m
  • 60mm ceiling cutout for recessed installation
  • Power supply 220-240V AC 50Hz
  • Maximum LED load 400W
  • Maximum incandescent load 800W
  • Time delay 10 seconds to 15 minutes
  • Ambient light control <10-2000 lux adjustable
  • Standby power <0.5W
  • Operating temperature -10°C to 40°C
  • Operating humidity <93% RH
  • IP20 rated
  • Terminal connection
  • Recessed mounting diameter 73.5mm
  • Surface mount housing diameter 74mm
  • 5 year warranty

Click here for Data Sheet

SKU SEN-PIR360RC-SM-W
