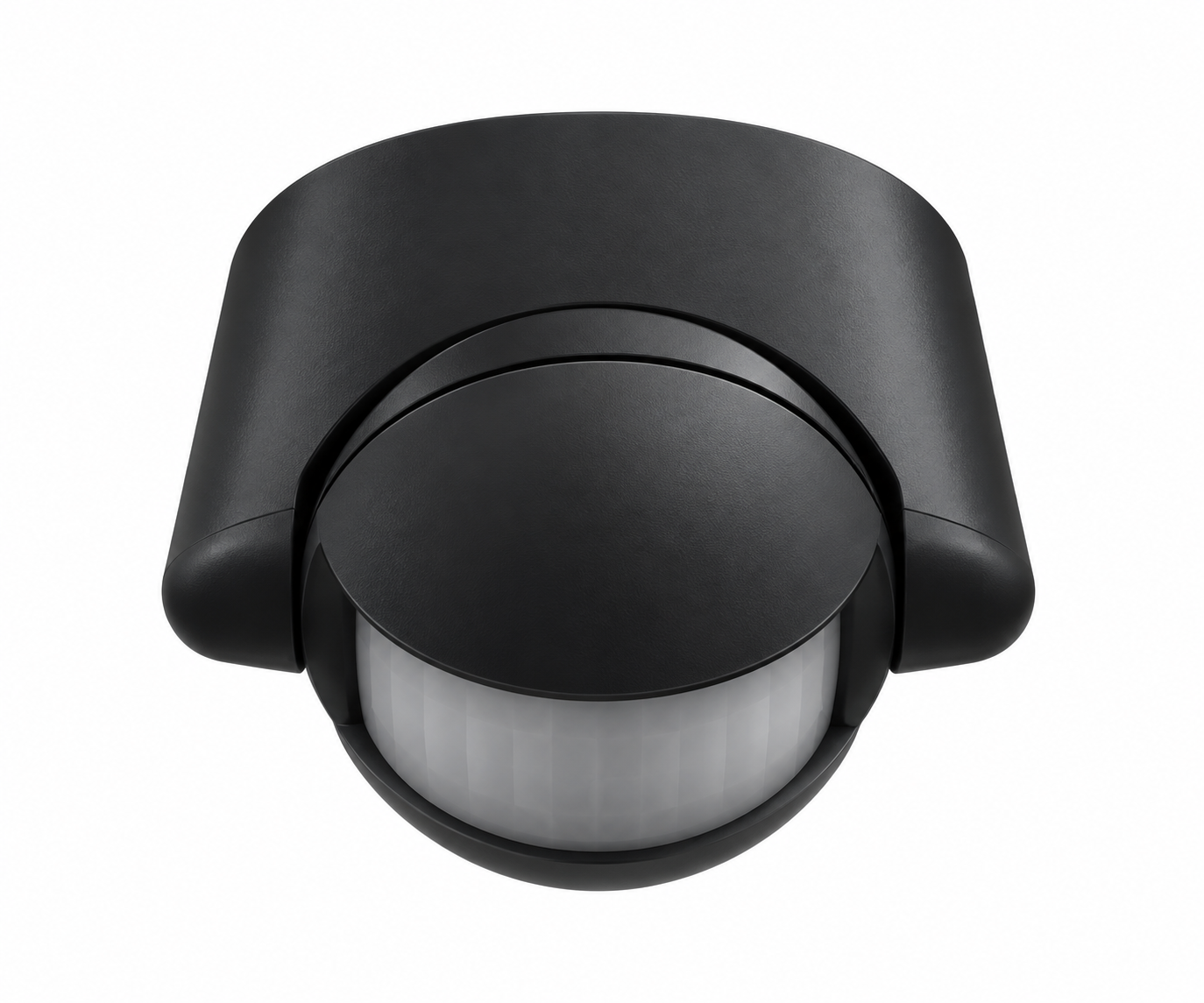

KASTA Sentura 180° IP44 Adjustable Surface Mount PIR Motion Sensor Black

The KASTA Sentura SEN-PIR180SMADJ-B is an adjustable surface-mounted PIR motion sensor designed for indoor and sheltered outdoor lighting control. It offers a 180° detection angle with a range of up to 12 metres, together with adjustable lux, time and sensitivity settings. Its IP44 weather-resistant ABS housing and loop-in/loop-out wiring support make it suitable for residential and commercial applications.

  • Brand KASTA
  • Series Sentura
  • PIR motion sensor
  • Black finish
  • 180° detection angle
  • Surface mount installation
  • Suitable for indoor applications
  • Suitable for sheltered outdoor applications
  • IP44 weather-resistant housing
  • Injection-moulded ABS body
  • High impact resistance
  • Supports loop-in/loop-out wiring
  • Suitable for parallel sensors or fittings
  • No minimum load requirement
  • Adjustable lux setting
  • Adjustable time setting
  • Adjustable sensitivity setting
  • Detection range up to 12m
  • Installation height 1.8-2.5m
  • Power supply 220-240V AC 50Hz
  • Maximum LED load 300W
  • Maximum incandescent load 1200W
  • Time delay 10 seconds to 7 minutes
  • Ambient light control <10-2000 lux adjustable
  • Standby power <0.5W
  • Operating temperature -10°C to 40°C
  • Operating humidity <93% RH
  • Terminal connection
  • Approximate dimensions 97 x 96.5 x 67mm
  • 5 year warranty

Click here for Data Sheet

SKU SEN-PIR180SMADJ-B
Brand Haneco
