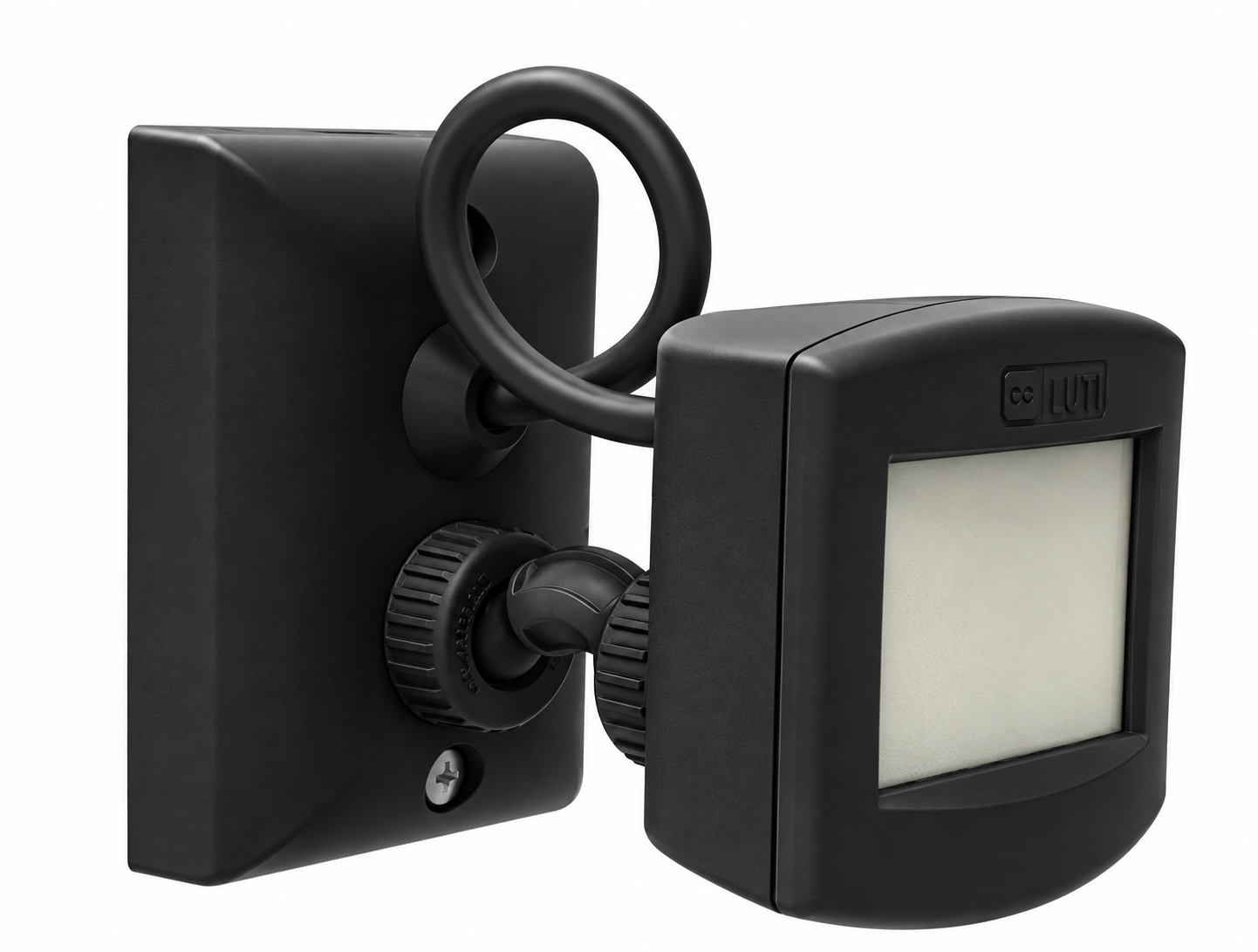

KASTA Sentura 110° IP66 Adjustable Surface Mount PIR Motion Sensor Black

The KASTA Sentura SEN-PIR110SMADJ-IP-B is an adjustable surface-mounted PIR motion sensor designed for outdoor residential and commercial lighting control. It provides a 110° field of view with detection from 2 to 18 metres, while the flat multi-segmented lens divides the field of view into 48 zones for precise motion sensing. It can be wall or ceiling mounted and features adjustable lux, time and sensitivity settings.

  • Brand KASTA
  • Series Sentura
  • PIR motion sensor
  • Black finish
  • 110° detection angle
  • Surface mount installation
  • Suitable for wall or ceiling mounting
  • Detection range 2-18m
  • 48-zone multi-segmented lens
  • Designed for outdoor motion detection
  • UV-protected lens and enclosure
  • IP66 weatherproof rating
  • Suitable for residential applications
  • Suitable for commercial applications
  • Adjustable lux setting
  • Adjustable time setting
  • Adjustable sensitivity setting
  • Installation height 1.8-2.5m
  • Power supply 220-240V AC 50Hz
  • Maximum LED load 500W
  • Maximum incandescent load 1000W
  • Time delay 10 seconds to 30 minutes
  • Ambient light control <10-2000 lux adjustable
  • Standby power <0.5W
  • Operating temperature -10°C to 40°C
  • Operating humidity <93% RH
  • Terminal connection
  • Approximate dimensions 74 x 141 x 115mm
  • Optional automatic operation with manual override ON or OFF
  • 5 year warranty

Click here for Data Sheet
