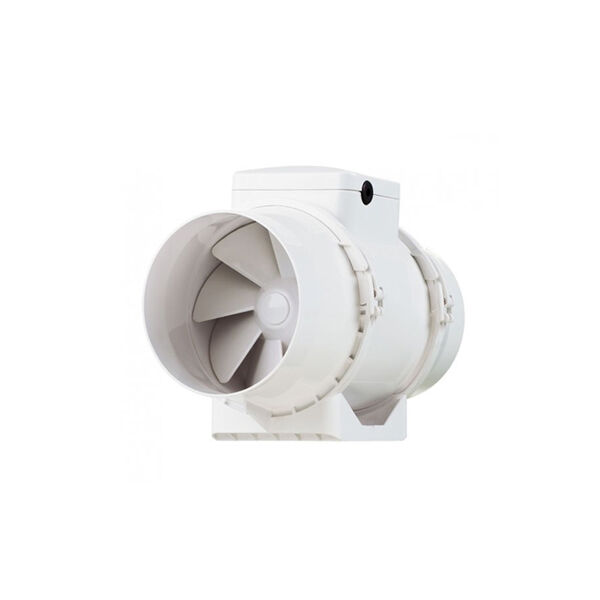

Fanco TT Mixflow 150 Inline Exhaust Fan 150mm

The Fanco EXVUTT150 TT Mixflow 150 is a versatile inline exhaust fan designed for both domestic and commercial ventilation applications. Part of the TT Mixflow Series, this ABS mixflow inline fan combines low noise performance with strong airflow, making it a practical choice for bathrooms, laundries, utility areas and general ducted ventilation setups. Built with a European motor and durable plastic casing, it is designed to deliver reliable everyday performance. The EXVUTT150 features low and high speed operation with airflow capacities of 405m³/hr and 520m³/hr. It runs on 230V, draws 0.17A to 0.27A and uses 30W to 60W depending on the selected speed, while producing a noise level of 33dB(A) to 44dB(A). The spec sheet also notes that the fan is IPX4 rated, designed for indoor use, and suitable for ambient temperatures from +1°C to +40°C with relative humidity up to 80%. Its durable ABS casing and removable central motor design make it practical for installation and servicing.

  • 150mm inline exhaust fan
  • Suitable for domestic and commercial applications
  • ABS mixflow inline fan
  • Low and high speed settings
  • Airflow 405m³/hr low speed
  • Airflow 520m³/hr high speed
  • Airflow 112.59l/s low speed
  • Airflow 144.56l/s high speed
  • Airflow 238.54CFM low speed
  • Airflow 306.28CFM high speed
  • Noise level 33dB(A) low speed
  • Noise level 44dB(A) high speed
  • 230V operation
  • 0.17A / 0.27A current draw
  • 30W / 60W power consumption
  • 150mm duct size
  • IPX4 rated
  • European motor
  • Durable plastic casing
  • Designed for indoor applications
  • Maximum transferred air temperature 60°C
  • Ambient temperature range +1°C to +40°C
  • Relative humidity up to 80%
  • Removable central motor design
  • Dimensions D 146mm B 223mm L 295mm H 250mm
  • 2 year replacement warranty

Click here for Data Sheet

SKU EXVUTT150
Brand Fanco
