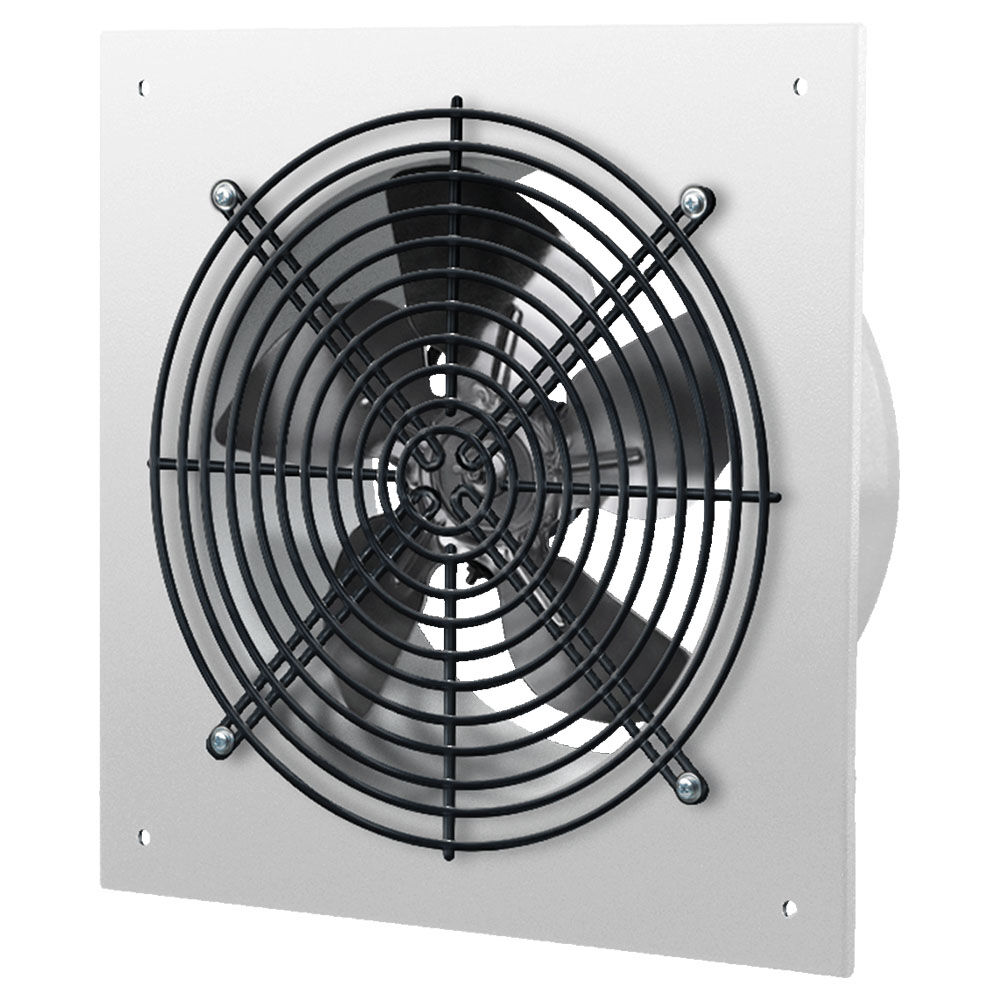

Fanco OV1 315 Commercial Grade Axial Exhaust Fan 315mm

The Fanco ECVUOV315 OV1 315 is a quality commercial grade axial exhaust fan designed to deliver high airflow for demanding ventilation applications. Part of the OV Series, this fan is suited to internal wall or ceiling mounting and offers a strong extraction rate for commercial and larger residential spaces where dependable performance is important. European made and built for reliable operation, it is a practical solution for high airflow exhaust applications. The ECVUOV315 operates on 230V and delivers 1700m³/hr airflow, 472.6l/s and 1001.3CFM. It draws 0.75A, uses 110W of power and produces a noise level of 54dB(A). The specification sheet notes IP24 protection and states the fan is suitable only for internal wall or ceiling mounting, though it can be connected to duct so air may be exhausted out of the house. It is also compatible with the ESEEAS speed controller.

  • OV1 315 model
  • Commercial grade axial exhaust fan
  • High airflow design
  • Suitable for internal wall mounting
  • Suitable for ceiling mounting
  • Can be connected to ducting
  • European made
  • 230V operation
  • 0.75A current draw
  • 110W power consumption
  • Airflow 1700m³/hr
  • Airflow 472.6l/s
  • Airflow 1001.3CFM
  • Noise level 54dB(A)
  • 315mm duct size
  • IP24 rated
  • Compatible with ESEEAS speed controller
  • Dimmer style speed switch compatible
  • Maximum transferred air temperature 40°C
  • Suitable for indoor applications
  • Ambient temperature range +1°C to +40°C
  • Relative humidity up to 80%
  • Dimensions B 430mm
  • Dimensions B1 380mm
  • Dimensions D 312mm
  • Dimensions L 170mm
  • Dimensions d 9mm
  • 2 year replacement warranty

Click here for Data Sheet

SKU ECVUOV315
Brand Fanco
