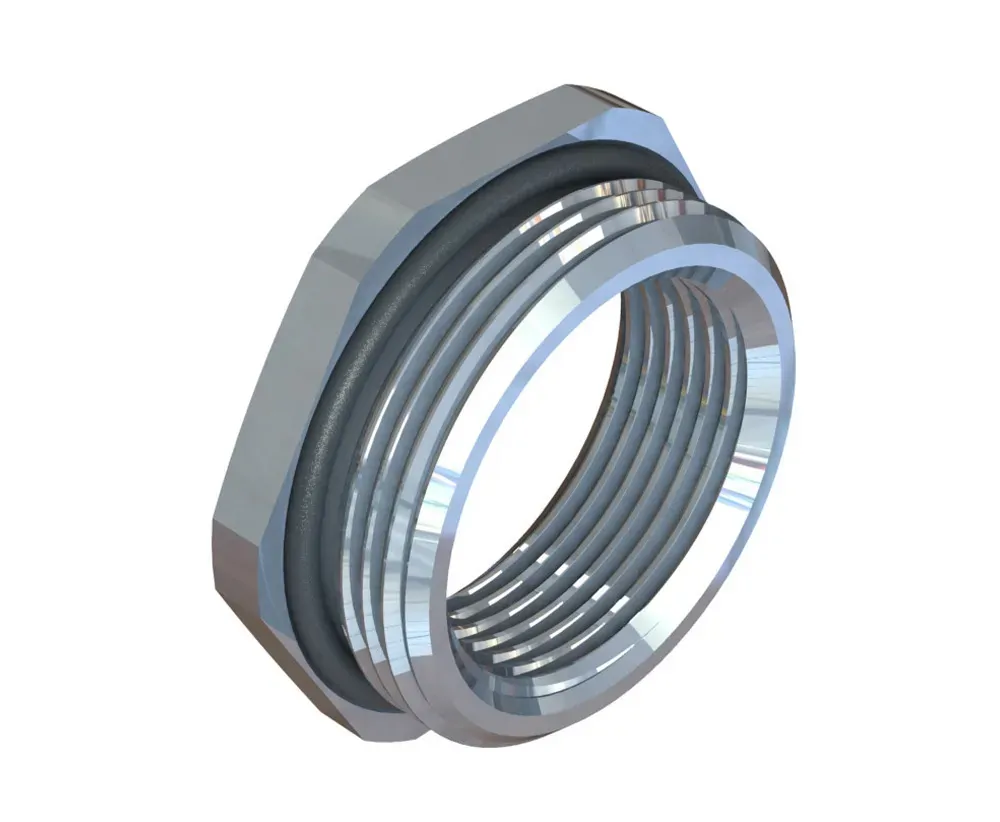

CABAC Nickel-Plated Brass Reducer M32 Male to M25 Female

The CABAC R/M32-M25/NPB is a nickel-plated brass reducer designed to adapt an M32 male thread to an M25 female thread in cable gland, conduit and enclosure installations. It provides a secure, corrosion-resistant connection and is supplied with an NBR O-ring for reliable sealing in industrial, commercial, indoor and outdoor applications.

Brand CABAC
Product type metal thread reducer
Material brass
Finish nickel plated
Plating thickness 2–3µm
O-ring material NBR
Outer thread M32 × 1.5
Inner thread M25 × 1.5
Thread length 8.0mm
Across flats 35.0mm
Overall length 11.5mm
Spanner size 35mm
Thread type ISO metric
Operating temperature -40°C to +100°C
Short-term temperature up to +120°C
Suitable for cable gland installations
Suitable for conduit fittings
Suitable for electrical panels and junction boxes
Suitable for industrial equipment
Suitable for indoor and outdoor applications
Sell unit bag
Quantity per bag 3

Click here for Data Sheet

SKU	RM32M25NPB
Brand	Cabac
