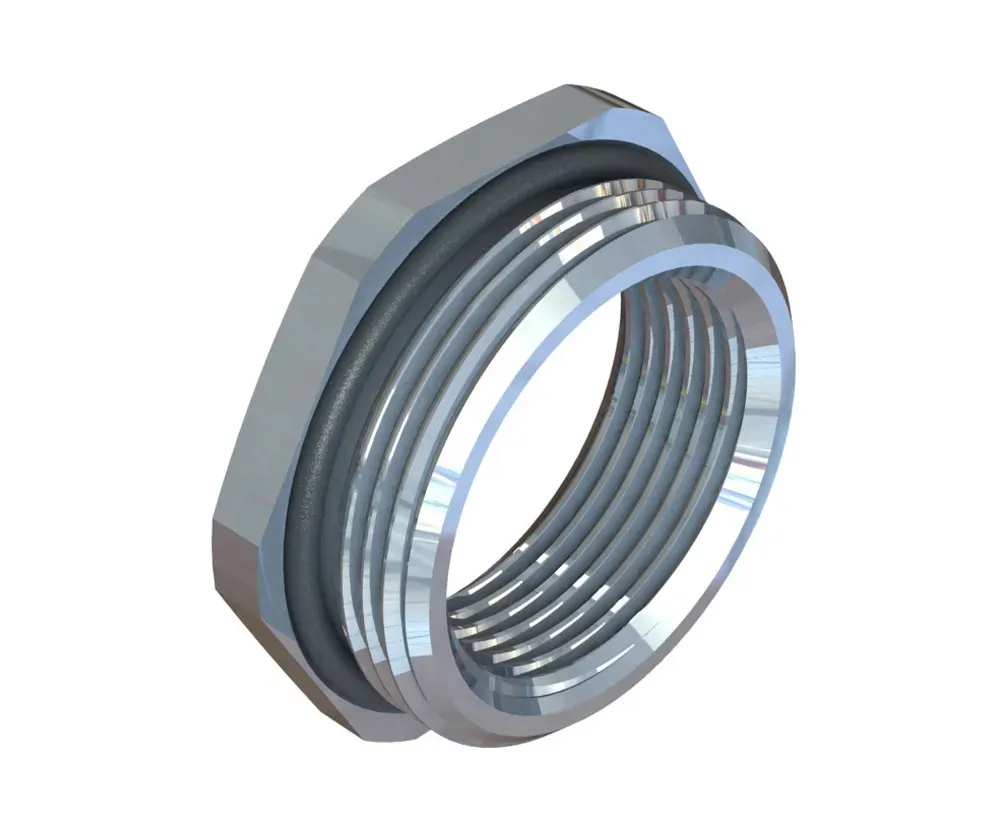

CABAC Nickel-Plated Brass Reducer M50 Male to M40 Female

The CABAC R/M50-M40/NPB is a nickel-plated brass reducer designed to adapt an M50 male thread to an M40 female thread in cable gland, conduit and enclosure installations. It provides a secure, corrosion-resistant connection and is supplied with an NBR O-ring for reliable sealing in industrial, commercial, indoor and outdoor applications.

Brand CABAC
Product type metal thread reducer
Material brass
Finish nickel plated
Plating thickness 2–3µm
O-ring material NBR
Outer thread M50 × 1.5
Inner thread M40 × 1.5
Thread length 10.0mm
Across flats 55.0mm
Overall length 14.0mm
Spanner size 55mm
Thread type ISO metric
Operating temperature -40°C to +100°C
Short-term temperature up to +120°C
Suitable for cable gland installations
Suitable for conduit fittings
Suitable for electrical panels and junction boxes
Suitable for industrial equipment
Suitable for indoor and outdoor applications
Sell unit bag
Quantity per bag 1

Click here for Data Sheet

SKU	RM50M40NPB
Brand	Cabac
