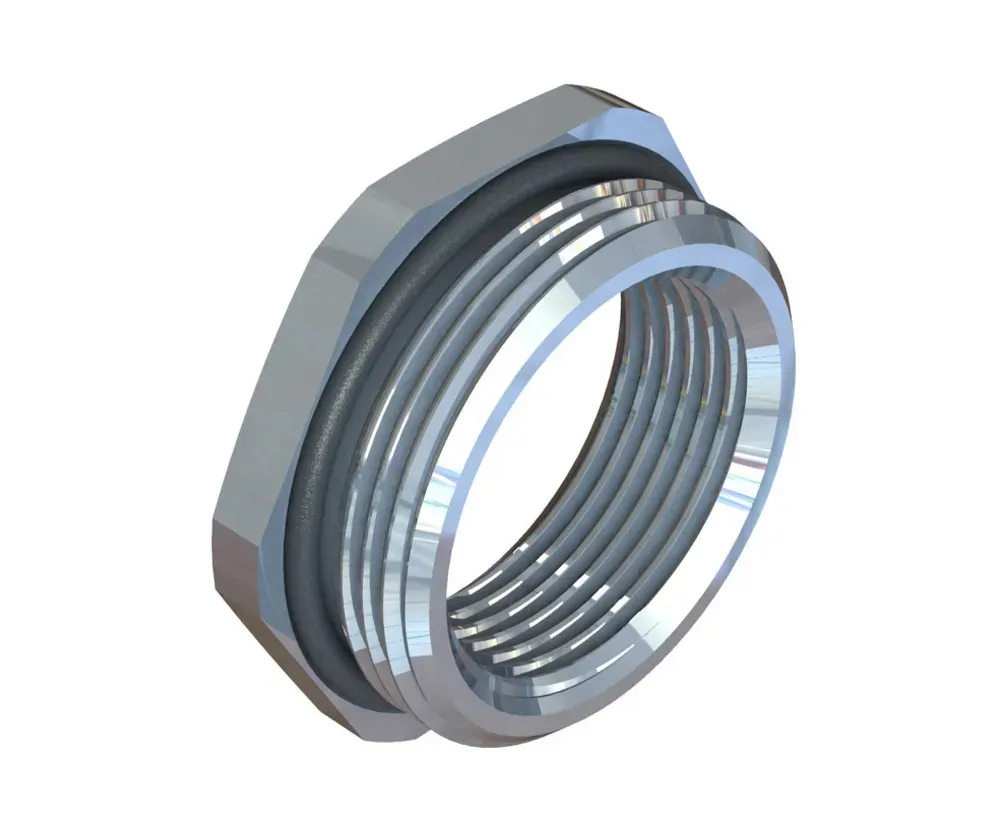

CABAC Nickel-Plated Brass Reducer M40 Male to M32 Female

The CABAC R/M40-M32/NPB is a nickel-plated brass reducer designed to adapt an M40 male thread to an M32 female thread in cable gland, conduit and enclosure installations. It provides a secure, corrosion-resistant connection and is supplied with an NBR O-ring for reliable sealing in industrial, commercial, indoor and outdoor applications.

Brand CABAC
Product type metal thread reducer
Material brass
Finish nickel plated
Plating thickness 2–3µm
O-ring material NBR
Outer thread M40 × 1.5
Inner thread M32 × 1.5
Thread length 9.0mm
Across flats 45.0mm
Overall length 12.5mm
Spanner size 45mm
Thread type ISO metric
Operating temperature -40°C to +100°C
Short-term temperature up to +120°C
Suitable for cable gland installations
Suitable for conduit fittings
Suitable for electrical panels and junction boxes
Suitable for industrial equipment
Suitable for indoor and outdoor applications
Sell unit bag
Quantity per bag 2

Click here for Data Sheet

SKU	RM40M32NPB
Brand	Cabac
