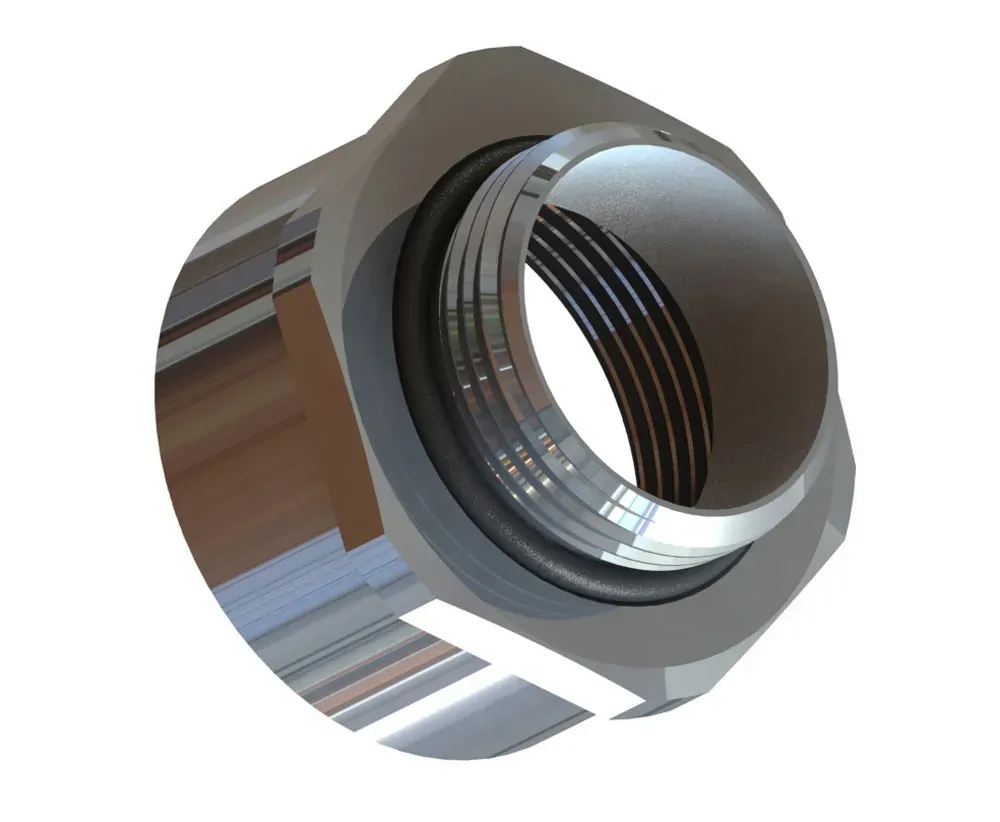

CABAC Nickel-Plated Brass Metal Enlarger M16 Male to M20 Female

The CABAC E/M16-M20/NPB is a nickel-plated brass enlarger designed to adapt an M16 male thread to an M20 female thread in cable gland, conduit and enclosure installations. It provides a secure, corrosion-resistant connection and is supplied with an NBR O-ring for reliable sealing in industrial and commercial environments.

Brand CABAC
Product type metal thread enlarger
Description M16 male to M20 female
Body material brass
Plating nickel
Plating thickness 2–3µm
O-ring material NBR nitrile butadiene rubber
Outer thread M16 x 1.5
Inner thread M20 x 1.5
Thread type ISO Metric M x 1.5
Thread length 5.0mm
A/F dimension 22.0mm
Overall length 10.5mm
Spanner size 22mm
Operating temperature -40°C to +100°C
Short-term temperature up to +120°C
Suitable for cable gland installations
Suitable for conduit installations
Suitable for enclosure entries
Suitable for electrical panels
Suitable for junction boxes
Suitable for industrial equipment
Suitable for indoor use
Suitable for outdoor use
Sell unit bag
Quantity per bag 5

Click here for Data Sheet

SKU	EM16M20NPB
Brand	Cabac
