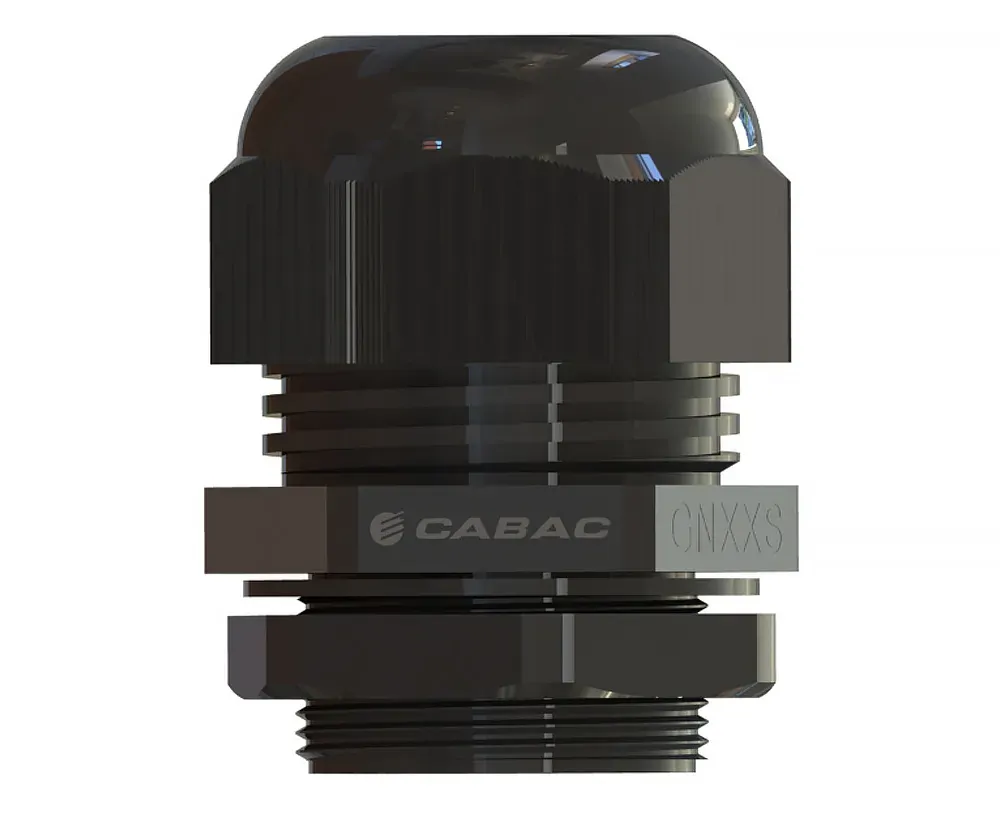

CABAC Standard Nylon Cable Gland M25 IP68

The CABAC GN25S is a standard nylon cable gland designed for general-purpose electrical installations, providing a reliable seal around cable sheaths in both indoor and outdoor environments. It is manufactured from halogen-free PA6, includes an NBR seal and PA6 locknut, and provides IP68 protection against dust and water ingress.

Brand CABAC
Product type standard nylon cable gland
Thread size M25 x 1.5
Thread length 15.0mm
Cable range 13–18mm OD
Across flats 32.7mm
Body material PA6
Seal material NBR
Locknut material PA6
Halogen free
Ingress protection IP68
UV stabilised
UV tested to ASTM G152:2016
UV exposure test 500 hours
Operating temperature -20°C to +100°C
CE compliant
UL94 V2 compliant
RoHS 2.0 compliant
EN 14582:2016 compliant
Low Voltage Directive 2014/35/EU compliant
Suitable for general-purpose electrical installations
Suitable for indoor use
Suitable for outdoor use
Minimum order quantity 1 box
Box quantity 15

Click here for Data Sheet

SKU	GN25S
Brand	Cabac
