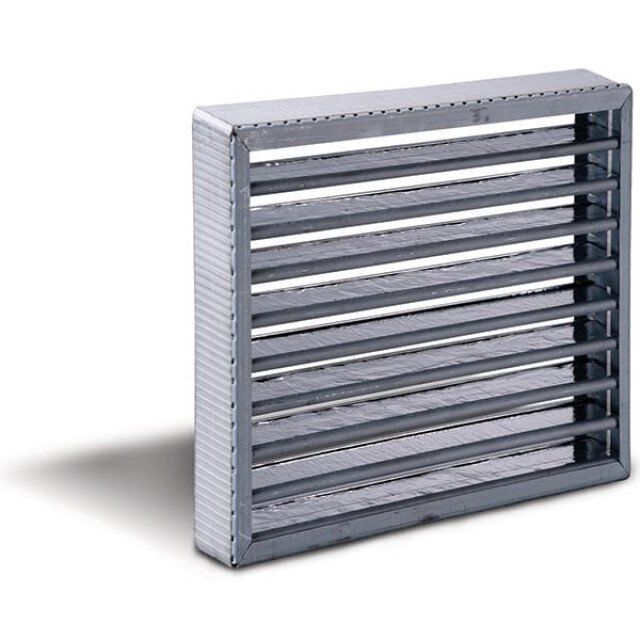

Allvent ALVIFDS1212 300MM Square Intumescent Fire Damper

The Allvent ALVIFDS1212 ALV509 is a 300mm square intumescent fire damper designed for larger ventilation openings through fire-rated walls and floors. Its rigid steel-framed grille allows normal airflow through the ventilation system, while the intumescent material expands under fire conditions to create a fire-stop barrier. With up to 2 hours of fire protection and no moving parts that require operational checks, it is a practical choice for commercial, multi-residential and larger residential ventilation projects where maintaining the integrity of fire-rated construction is important. It can also be fitted into steel ducting for a secure in-line installation.

Square intumescent fire damper
300mm square size
Rigid steel-framed construction
Intumescent fire-stop design
Allows airflow through fire-rated walls and floors
Intumescent material expands under fire conditions
Forms a fire-stop barrier
Up to 2 hours fire protection
Can be fitted into a steel duct
No moving parts
No moving mechanisms requiring operational checks
Rectangle intumescent fire dampers also available
Suitable for larger ventilation openings
Suitable for residential ventilation systems
Suitable for commercial ventilation systems
Suitable for multi-residential applications
Suitable where ventilation passes through fire-rated walls or floors

Click here for Data Sheet

SKU	ALV509
Brand	Allvent
