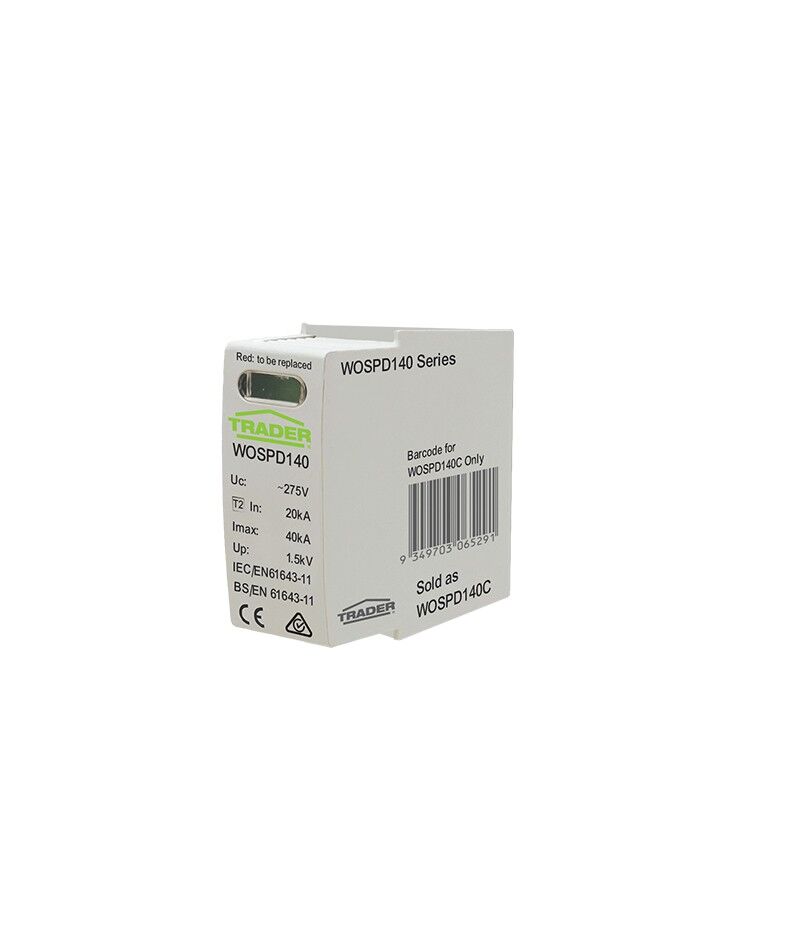

Trader Wolverine SPD Surge Protection Device 1 Pole 40kA 275V AC Replacement Cartridge Only

  • Ratings and technical specifications in accordance with standards
    IEC/EN 1643-11,BS/EN 61643-11
  • For use in switch boards where MEN configurations are present
  • Pole No. 1P with removeable cartridge
  • Max.continuous operating a.c.voltage Uc 275V
  • cdischarge current (8/20μs) In 20kA
  • Maximum discharge current (8/20μs) Imax 40kA
  • Voltage protection level Up ≤1.5kV
  • Max.backup fuse/MCB 32A gL/32A
  • Response time tA ≤25ns
  • Operating temperature range Tu -40℃~80℃
  • Operating State/Fault Indication Green/Red
  • Cross-section area (Min.) 6mm²
  • Cross-section area (Max.) 16mm²
  • 35mm Din rail suitable
  • IP20
  • Housing polymer flammability rating UL94-V0
  • Tightening torque 2.5Nm
  • Drive type #2 Pozi-drive
  • Strip length 14mm

Click here for Data Sheet

SKU WOSPD140C
Brand Trader
