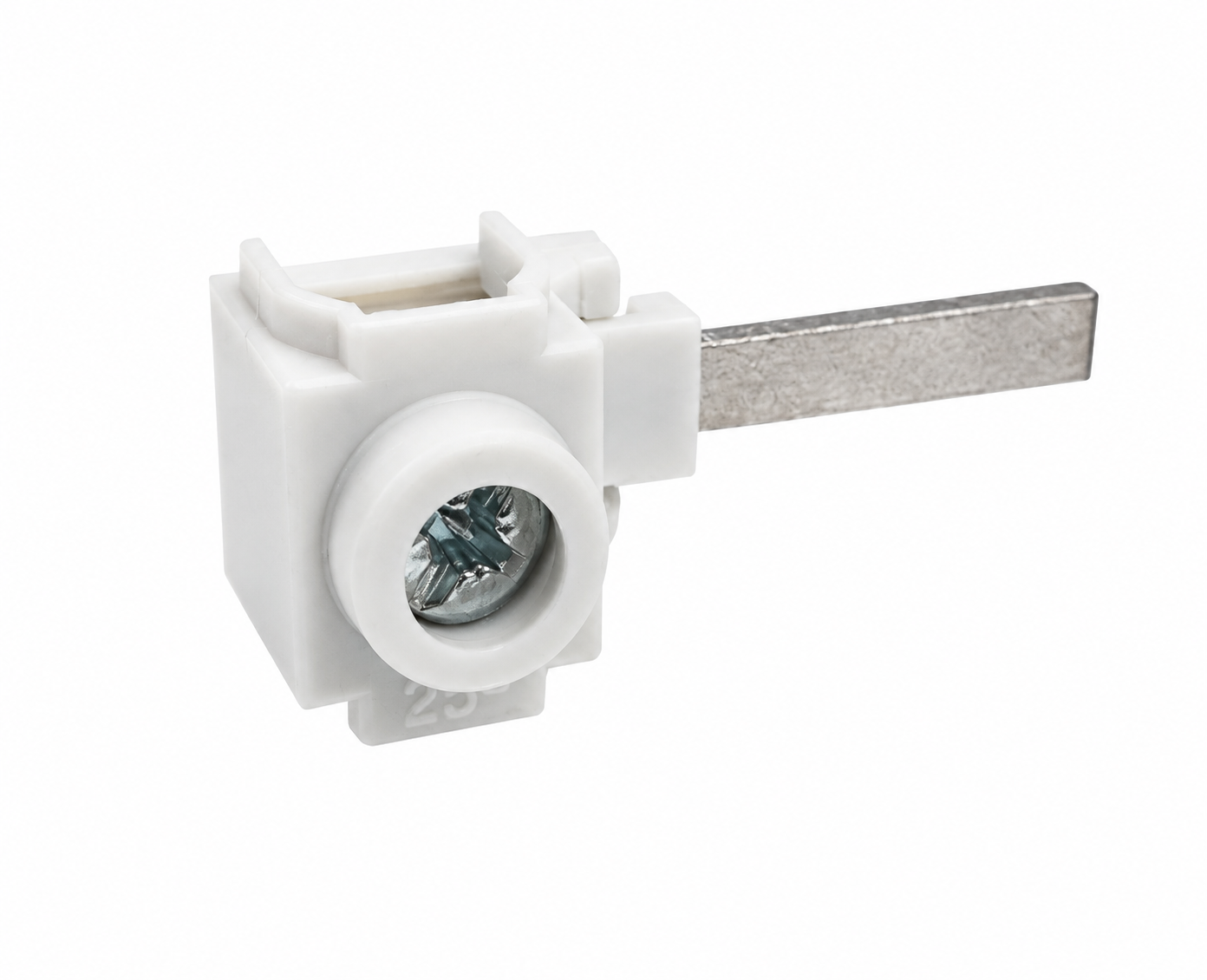

Trader Wolverine Busbar Connector 25mm² Pack of 4

The Trader Wolverine WOBBC25 Busbar Connector is a precision-engineered busbar connector designed to provide reliable electrical distribution across industrial, commercial and residential applications. As part of the Wolverine busbar accessory range, it is intended to simplify connections in modern electrical distribution systems by offering a standardised method of connecting RCBOs and MCBs to a common distributed power source. Designed for dependable performance, the WOBBC25 is rated for current loads up to 63A and can terminate 25mm² cable. The datasheet notes a premium PVC outer casing for electrical insulation, a high quality copper connection tongue paired with a brass terminal for strong conductivity, and a nickel plated finish for environmental protection. It is also designed to suit tongue type connector RCBO terminals as well as clamping in standard terminals used with fork style busbar assemblies. The connector tongue measures 2.0mm thick x 4.0mm wide x 20.8mm long from the insulation, and the cable bore is 6.6mm diameter for 25mm² cable. The sheet lists the product as a pack of 4.

  • Busbar accessory
  • Pack of 4
  • Designed for electrical distribution systems
  • Suitable for industrial commercial and residential applications
  • Helps connect RCBOs and MCBs to a common power source
  • Rated current capacity 63A
  • Suitable for 25mm² cable termination
  • Premium PVC outer casing
  • High quality copper connection tongue
  • Brass terminal
  • Nickel plated finish for environmental protection
  • Designed for straightforward installation
  • Provides consistent operational stability
  • Suitable for tongue type connector RCBO terminals
  • Suitable for standard terminals used with fork style busbar assemblies
  • Tongue dimensions 2.0mm thick x 4.0mm wide x 20.8mm long from insulation
  • Cable bore diameter 6.6mm
  • Dimensions shown 42mm x 17mm x 17.5mm

Click here for Data Sheet

SKU WOBBC25
