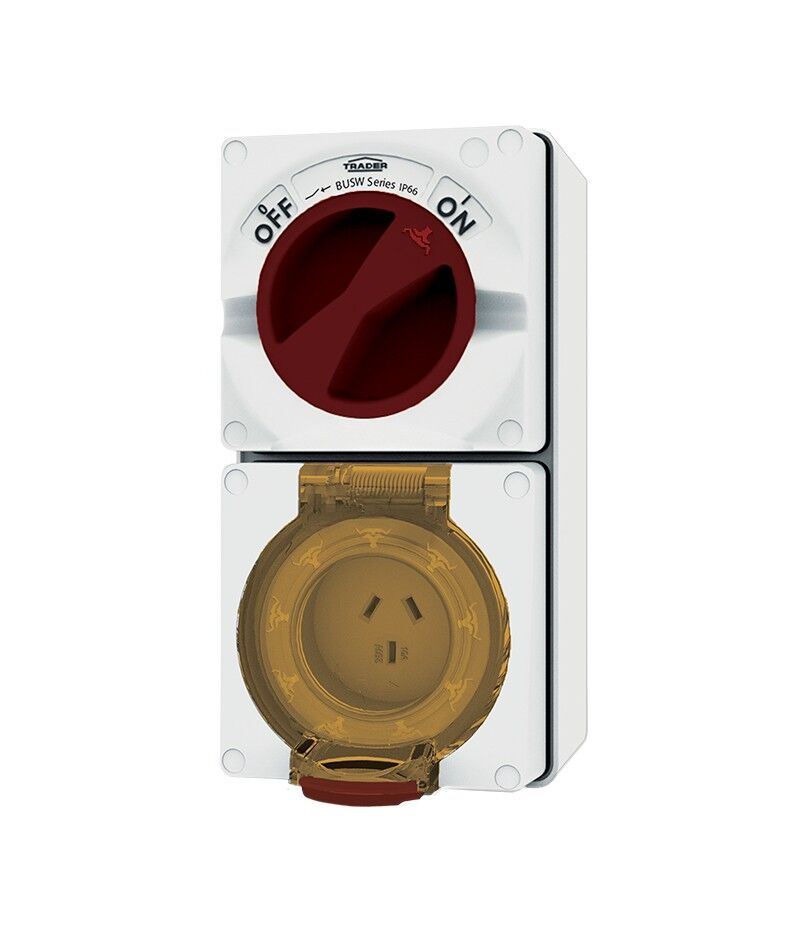

Trader Buffalo Combination Switched Socket IP66 250V AC 3 Flat Pin Chemical Resistant White

Buffalo offers an extensive range of IP66 rated Combination Switched Sockets that are available in three-pin 10A to 32A, four-pin 10A to 50A and five-pin 10A to 50A designs.
Phase links are factory fitted between switches and sockets.Heavy Duty terminals are standard on all products with Double Pole switching option as standard on 3 pin products.
The combination switch handle has two padlocking facilities (Oval Shape 11 x 9mm) so equipment can be safely isolated.Switch is provided with LED fitment option (not supplied).
Combination sockets feature a clear dustproof & hoseproof flap allowing simple viewing of sockets. The flap is also provided with a reliable spring-tensioned latch to keep dust & liquids out. Part bag contains twin screwed connector. Chemical Resistant White for Acid Applications.

  • Small Single phase Flat pin - 10A to 20A
  • Size 1 Single & Three Phase - 10A- 20A
  • Size 2 Single & Three Phase - 32A - 50A
  • Recommended screw torque for corner cover screws 0.6Nm
  • Recommended torque for Earth/Neutral fixed terminals 2Nm
  • Recommended torque for Switch terminals 2.5Nm

Click here for Data Sheet



SKU BUC_RW
Brand Trader
