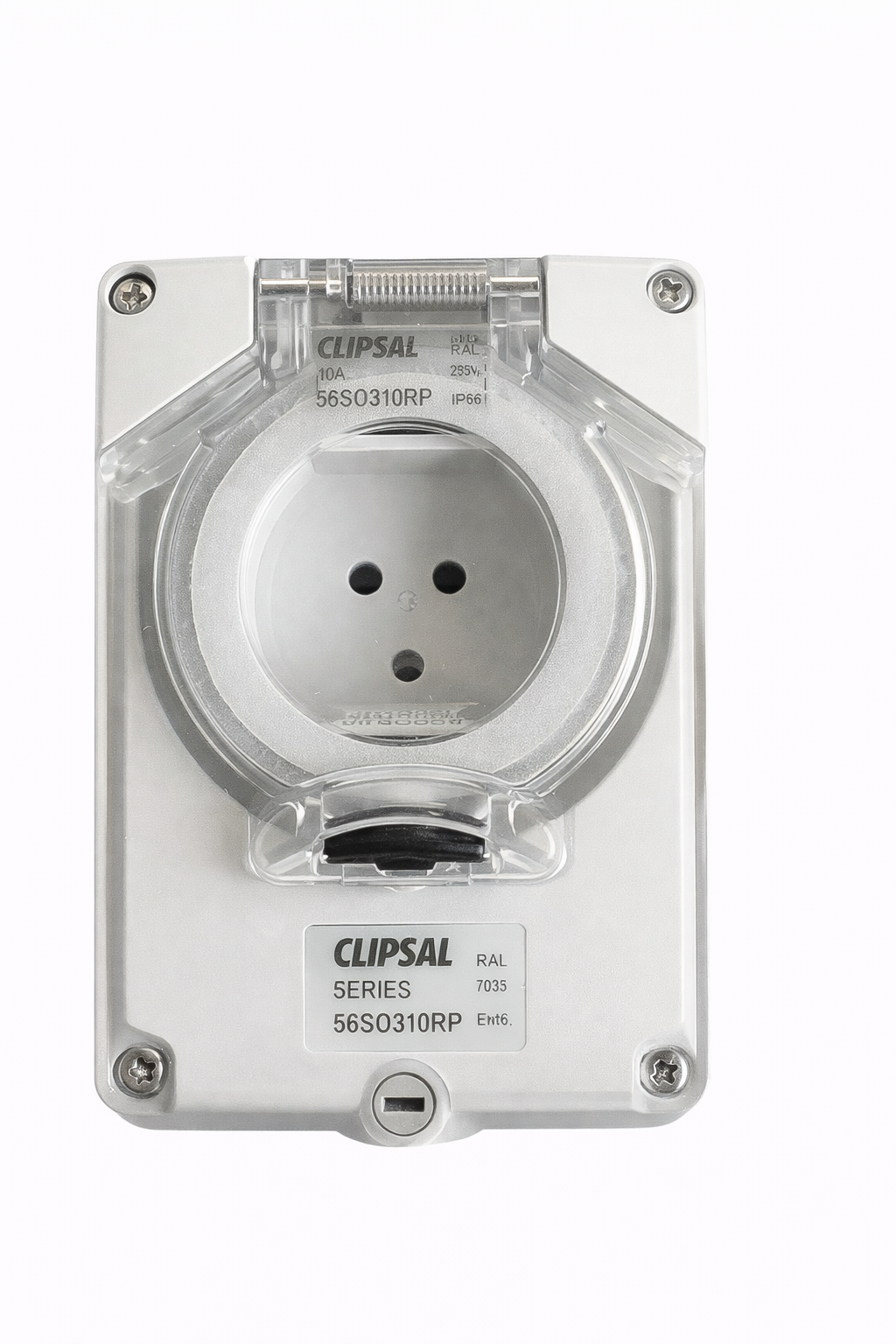

Clipsal 56 Series Surface Socket 3 Round Pin 10A 250V IP66 Grey

The Clipsal 56SO310RP-GY 56 Series Surface Socket is a durable industrial socket outlet designed for reliable power supply in demanding indoor and outdoor environments. Built as part of the trusted Clipsal 56 Series, this surface mounted socket features a robust grey polycarbonate cover and is ideal for commercial, industrial and workshop applications where durability and dependable performance are essential. Its IP66 protection makes it well suited to harsh Australian conditions. Rated at 10A and 250V AC, the 56SO310RP-GY features a 3 round pin configuration with 1P + N + E pole arrangement and a single socket outlet. Designed for external mounting, it uses screw terminals suited to 1.5mm² to 6mm² rigid or stranded cable and conforms to AS/NZS 3112 and AS/NZS 4417.1. Compact and practical, this socket measures 101mm wide, 107mm high and 77mm deep, making it a dependable solution for industrial power connection applications.

  • Grey finish RAL 7035
  • 3 round pin socket
  • 1P + N + E configuration
  • 10A rated current
  • 250V AC 50Hz rated voltage
  • IP66 protection rating
  • Surface mounted socket outlet
  • External mounting
  • Industrial outlet standard
  • Single socket outlet
  • Socket-outlet type G
  • Low voltage socket
  • Polycarbonate cover
  • Screw terminals
  • Suitable for 1.5mm² to 6mm² rigid or stranded cable
  • Terminal tightening torque 0.8Nm
  • Conforms to AS/NZS 3112
  • Conforms to AS/NZS 4417.1

Click here for Data Sheet

SKU 56SO310RP-GY
Brand Clipsal
