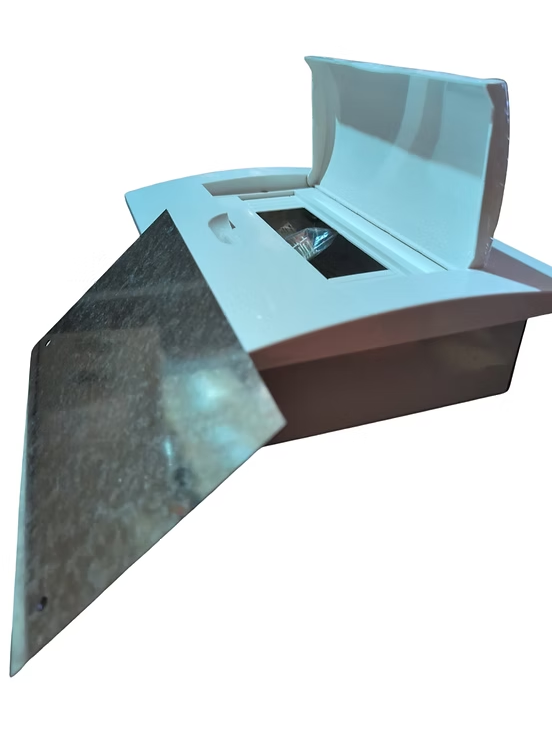

Tesla Plastic Distribution Board Load Centre Recessed with Metal Backing Plate 12 Pole

The Tesla TESPDBL12RMB is a recessed plastic distribution board load centre designed for neat, secure switchboard installations where a built-in finish and added metal backing support are required. Part of the Tesla PDBLRMB Series, this 12 pole enclosure combines a white housing with a transparent cover, making it a practical option for residential and light commercial applications where visibility, protection and clean presentation matter. This model features an IP40 rating, split neutral and earth bars rated at 100A, a top hinged door and a comprehensive range of legend stickers. The datasheet also notes an ABS base, polycarbonate door and a 1mm metal backing plate. For the 12 pole version, overall distribution board measurements are listed as 30.5 high, 24.5 wide and 10 deep, with a weight of 2kg. Cut out dimensions are 28 high, 21.5 wide and 6.3 deep. The product sheet also lists a 10 year warranty.

12 pole recessed load centre
Plastic distribution board
Recessed installation
Metal backing plate included
Metal backing plate depth 1mm
White enclosure
Transparent cover
IP40 rated
Split neutral bar rated 100A
Split earth bar rated 100A
Top hinged door
Comprehensive range of legend stickers
ABS base material

Click here for Data Sheet

SKU	TESPDBL12RMB
Brand	Telsa
