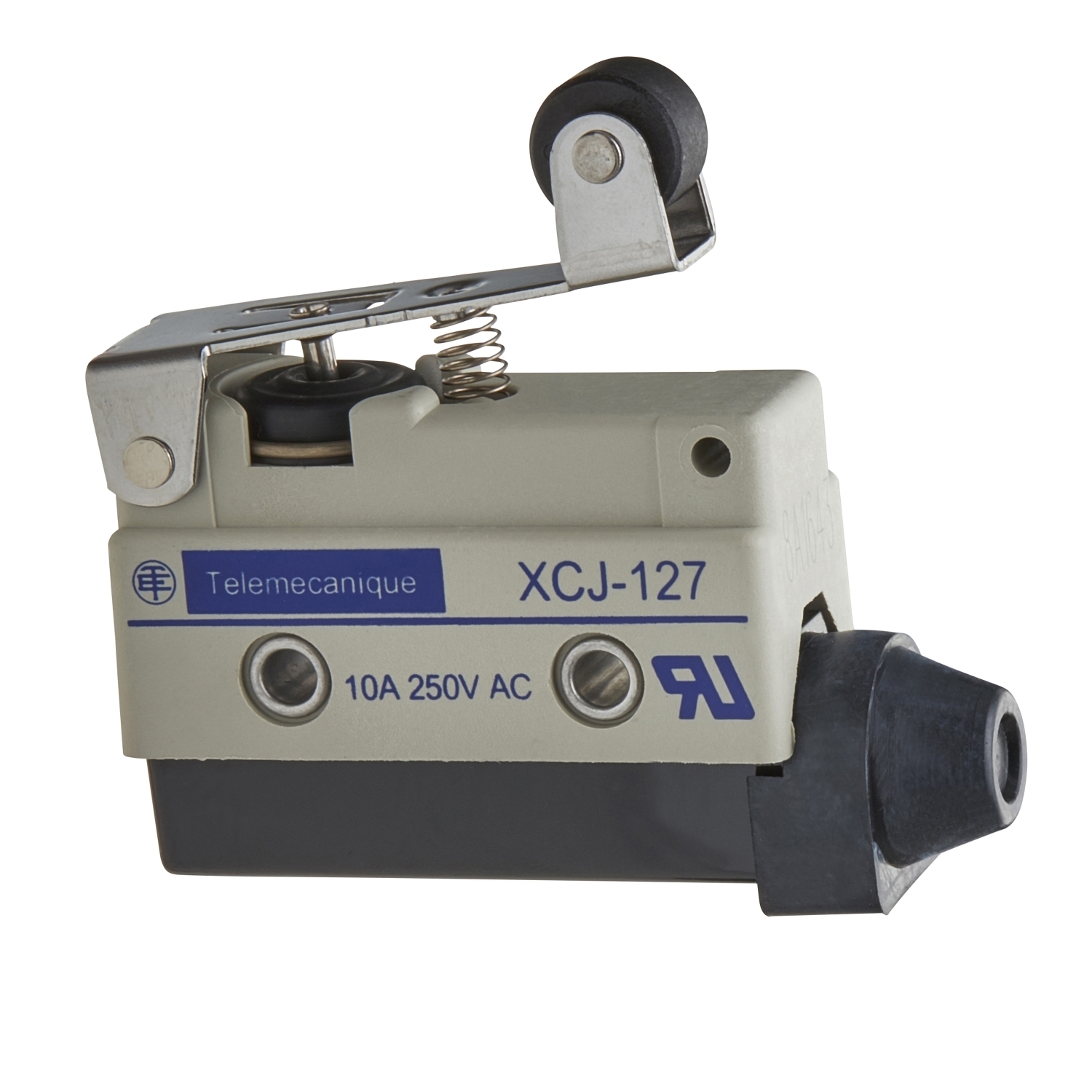

Telemechanique XCJ127 Limit Switch with Short Roller


range of product OsiSense XC
series name Asie
product or component type Limit switch
product specific application Light to medium duty
device short name XCJ
body type Fixed
head type Plunger head
material Plastic
fixing mode By the body
movement of operating head Linear
type of operator Roller lever plunger thermoplastic short and flat
switch actuation By 30° cam
type of approach Lateral approach, 1 direction
electrical connection Screw-clamp terminals
cable entry 1 flexible rubber cable gland, cable outer diameter: 8.5…10.5 mm
number of poles 1
contact operation Snap action
positive opening Without
maximum force for tripping 2.3 N

contacts insulation form C
minimum release force 0.78 N
minimum actuation speed 0.01 mm/s
maximum actuation speed 0.5 m/s
maximum operating rate 120 cyc/mn
contact code designation A300, AC (Ue = 240 V), Ie = 10 A, Ithe = 10 A conforming to IEC 60947-5-1
R300, DC (Ue = 220 V), Ie = 0.3 A conforming to IEC 60947-5-1
maximum resistance across terminals 25 MOhm
[Uimp] rated impulse withstand voltage 4 kV conforming to EN/IEC 60664
electrical durability 800000 cycles, AC, 10 A, 220 V
mechanical durability 10000000 cycles
width 21 mm
height 42 mm
depth 54 mm
net weight 0.057 kg
terminals description ISO n°1 (NO-NC-C)OF

shock resistance 10 gn for 11 ms conforming to IEC 60068-2-27
vibration resistance +/- 1.5 mm (f= 10…55 Hz) conforming to IEC 60068-2-6
IP degree of protection IP40 conforming to IEC 60529
electrical shock protection class Class II conforming to EN/IEC 60947-5-1
ambient air temperature for operation -10…80 °C
product certifications UL recognized
standards UL 1054

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Weight 60.0 g
Package 1 Height 7.85 cm
Package 1 Width 2.14 cm
Package 1 Length 7.05 cm
Unit Type of Package 2 CAR
Number of Units in Package 2 150
Package 2 Weight 9.0 kg
Package 2 Height 30.0 cm
Package 2 Width 24.0 cm
Package 2 Length 38.5 cm

Warranty 18 months

Click here for Data Sheet

SKU XCJ127
