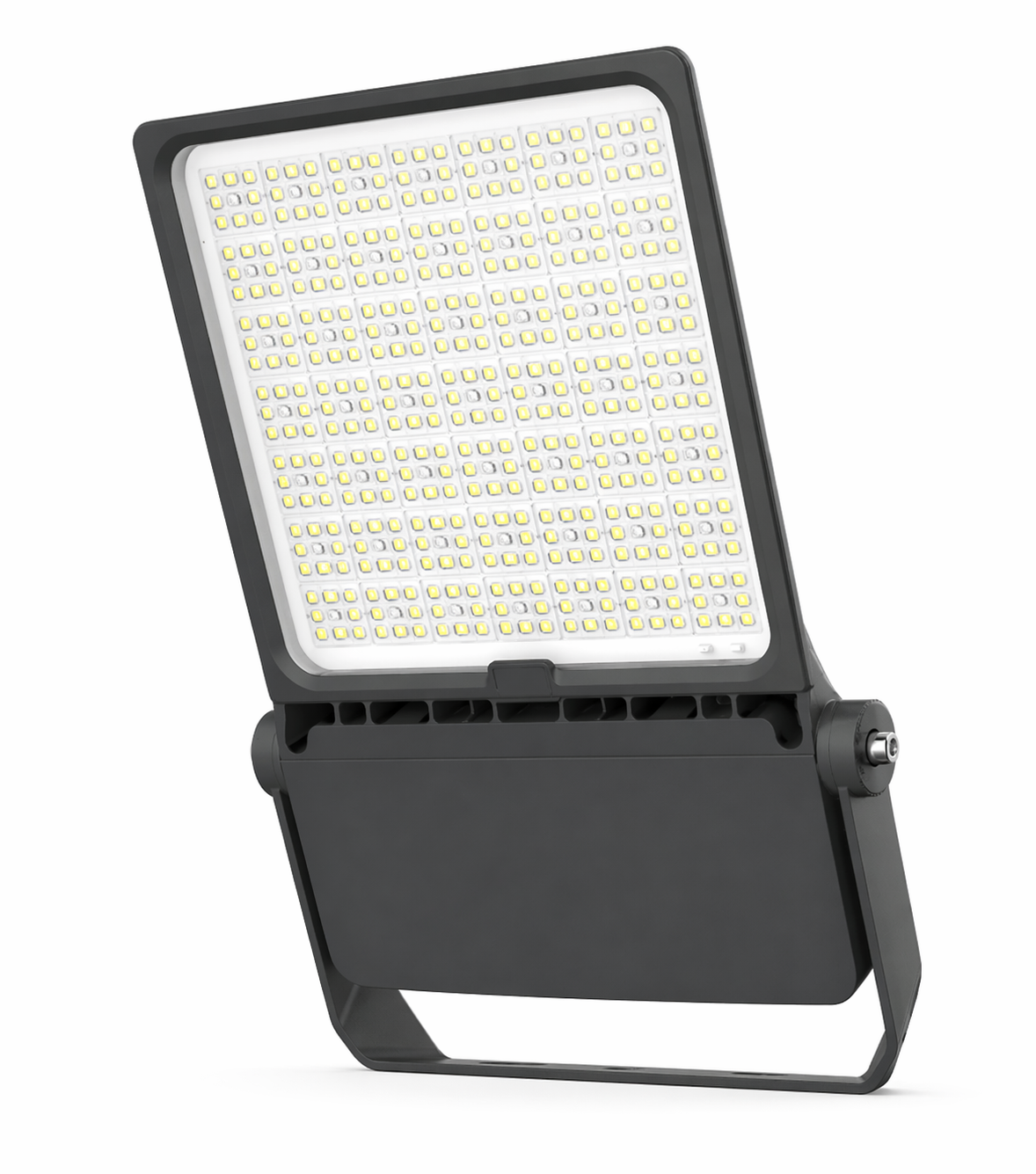

Teknik Titan Gen 2 LED Floodlight 400W 500W 600W 5000K T3 IP66

The Teknik FT2-600DT3-N Titan Gen 2 LED Floodlight is a high performance floodlighting solution engineered for harsh industrial environments and demanding sports lighting applications. With selectable wattage settings of 400W, 500W and 600W, this powerful luminaire delivers precise optical control to direct light where it is needed while reducing upward waste light and glare. Its compact, lightweight design with low EPA also makes it easier to handle and install in larger scale applications. Built for durability and reliable long term operation, the FT2-600DT3-N features an aluminium alloy body with polycarbonate and tempered glass construction, a T3 beam angle, IP66 ingress protection and 0-10V dimming. It delivers lumen outputs of 64,000lm, 80,000lm and 96,000lm depending on the wattage selected, with a 5000K colour temperature and CRI of at least 70. The Titan Gen 2 range also includes twin M20 cable glands for easy loop-in loop-out wiring, a NEMA base for optional PE or Syncromesh wireless control, and 5 degree angle marks for precise aiming. On page 2, the datasheet lists the 450W/600W housing dimensions as 750mm high, 500mm wide, 400mm across, 410mm bracket depth and 80mm profile depth, with a fitting weight of 13.5kg.

• Selectable wattage 400W 500W 600W
• Lumen output 64,000lm 80,000lm 96,000lm
• 5000K colour temperature
• T3 beam angle
• IP66 protection rating
• 0-10V dimmable
• CRI 70 or higher
• Power factor greater than 0.9
• Input voltage 100-277V 50/60Hz
• Rated life 50,000 hours or more
• Aluminium alloy body
• Polycarbonate and tempered glass construction
• Compact and lightweight design
• Low EPA design
• Twin M20 cable glands for loop-in loop-out wiring
• NEMA base for optional PE or Syncromesh wireless control
• 5 degree marks for precise angle control
• Operating temperature range -40°C to +50°C
• Terminal block connection
• Installation by trunnion or U-bracket
• Dimensions 750mm x 500mm x 400mm x 410mm x 80mm

Click here for Data Sheet
