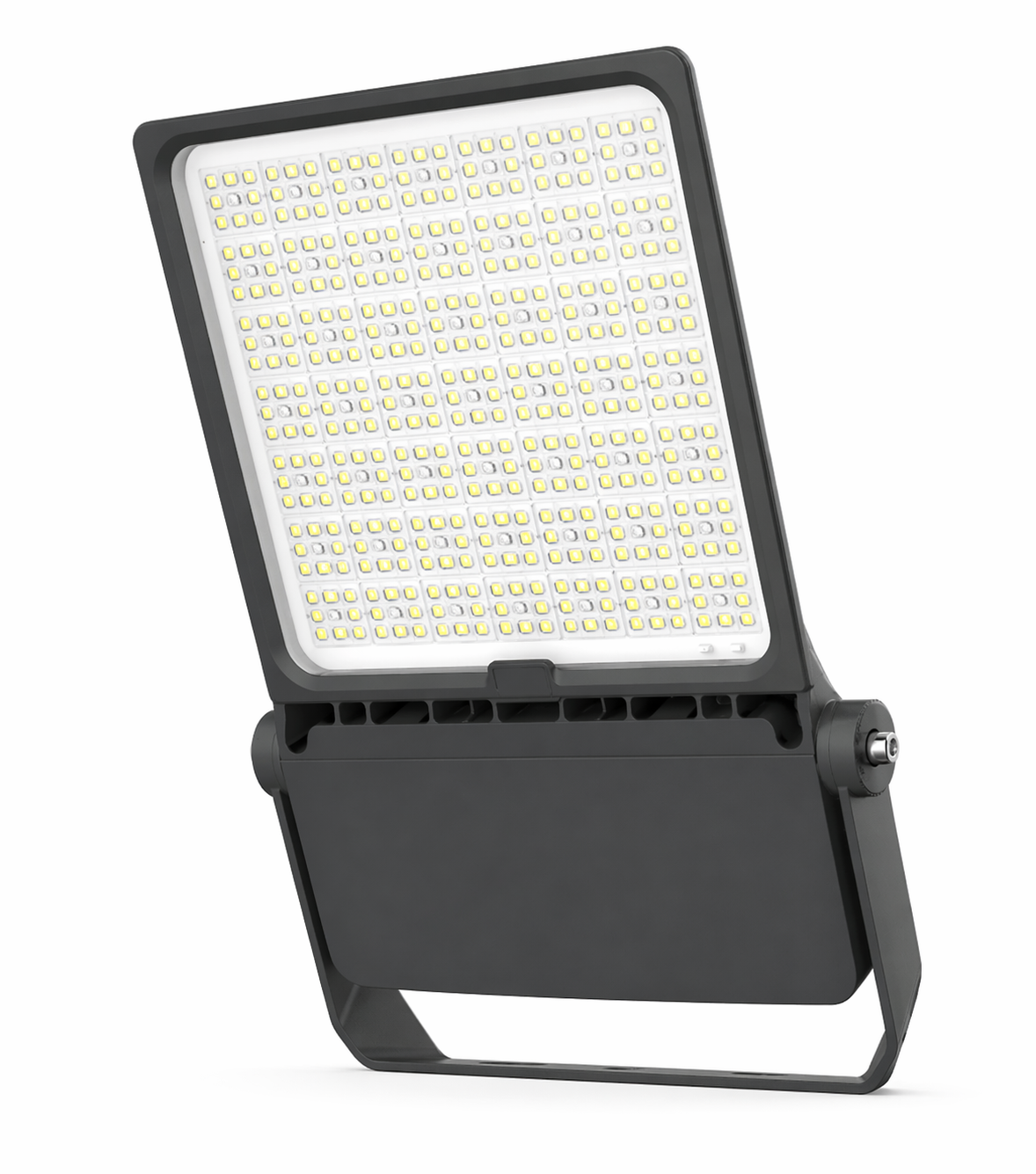

Teknik Titan Gen 2 LED Floodlight 100W 200W 300W 5000K T3 IP66

The Teknik FT2-300DT3-N Titan Gen 2 LED Floodlight is a tough and efficient floodlighting solution designed for harsh industrial environments and demanding sports lighting applications. Featuring selectable wattage settings of 100W, 200W and 300W, this versatile luminaire delivers strong performance with precise optical control, helping direct light where it is needed while reducing upward waste light and glare. Its compact and lightweight design with low EPA also makes it easier to handle and install across a wide range of projects. Built for durability and long term reliability, the FT2-300DT3-N features an aluminium alloy body with polycarbonate and tempered glass construction, a T3 beam angle, IP66 ingress protection and 0-10V dimming. It delivers lumen outputs of 16,000lm, 32,000lm and 48,000lm depending on the wattage selected, with a 5000K colour temperature and CRI of at least 70. The Titan Gen 2 range also includes twin M20 cable glands for easy loop-in loop-out wiring, a NEMA base for optional PE or Syncromesh wireless control, and 5 degree angle marks for precise adjustment. The datasheet lists dimensions of 580mm high, 400mm wide, 308mm across, 316mm bracket depth and 80mm profile depth, with a fitting weight of 7.5kg.

• Selectable wattage 100W 200W 300W
• Lumen output 16,000lm 32,000lm 48,000lm
• 5000K colour temperature
• T3 beam angle
• IP66 protection rating
• 0-10V dimmable
• CRI 70 or higher
• Power factor greater than 0.9
• Input voltage 100-277V 50/60Hz
• Rated life 50,000 hours or more
• Aluminium alloy body
• Polycarbonate and tempered glass construction
• Compact and lightweight design
• Low EPA design
• Twin M20 cable glands for loop-in loop-out wiring
• NEMA base for optional PE or Syncromesh wireless control
• 5 degree marks for precise angle control
• Operating temperature range -40°C to +50°C
• Terminal block connection
• Installation by trunnion or U-bracket
• Dimensions 580mm x 400mm x 308mm x 316mm x 80mm

Click here for Data Sheet
