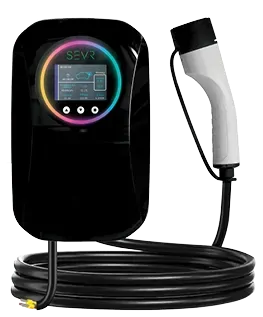

SEVR ESeries 7kW Single Phase EV Charger with 4.2m Type 2 Cable

The SEVR ESeries SV-EVES7-5MT-B is a 7kW single-phase AC EV charger designed for Australian homes and small businesses. It provides adjustable charging from 8A to 32A, delayed-start charging in 30-minute increments up to 24 hours, and a clear display with an illuminated status ring for at-a-glance operation. Supplied with a 4.2 metre tethered Type 2 charging cable and 0.5 metre input cable, it offers a practical wall-mounted EV charging solution for convenient overnight and off-peak vehicle charging. Installation must be completed by a licensed electrician in accordance with AS/NZS 3000.

  • Series ESeries
  • 7kW AC EV charger
  • Single-phase operation
  • 110-240V AC
  • Maximum output current 32A
  • Adjustable charging current from 8A to 32A
  • 50/60Hz
  • Type 2 charging connection
  • 4.2 metre tethered AC Type 2 charging cable
  • 0.5 metre input cable
  • Delayed start charging from 0 to 24 hours
  • 30-minute delayed charging increments
  • Designed to help schedule charging for off-peak electricity periods
  • IP54 rated
  • Operating temperature -30°C to +50°C
  • Standby power consumption ≤5W
  • Driver efficiency under full load ≥99.8%
  • Wall-mounted or pole-mounted installation
  • Dimensions 220mm W x 340mm H x 100mm D
  • Weight 4kg
  • Suitable cable 3 x 6mm²
  • LED status light ring
  • Emergency stop function
  • 3-year warranty
  • Suitable for Australian homes and small businesses
  • Licensed electrician installation required

Click here for Data Sheet

SKU SV-EVES7-5MT-B
Brand Sevr
