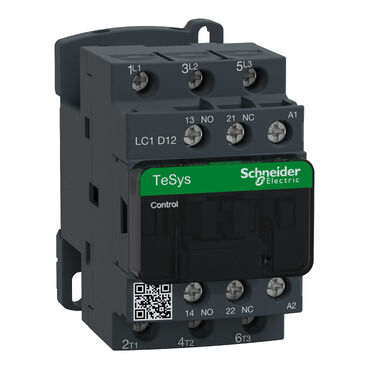

Schneider TeSys Contactor 3P(3 NO) AC-3/AC-3e 0 to 440V 12A 32VAC 50/60Hz Coil



  • TeSys Deca contactor, 3 poles (3NO), for motor control applications up to 12A/690V AC-3/3e (5.5kW@400V).
  • It provides a 32V 50/60Hz AC coil, 1NO+1NC built-in auxiliary contacts (NC mirror certified), connection by screw clamp terminals.
  • For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability.
  • Compact (45mm width), DIN-rail mounting or screw fixing.
  • Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine).

Click here for Data Sheet

SKU LC1D12C7
Brand Schneider
