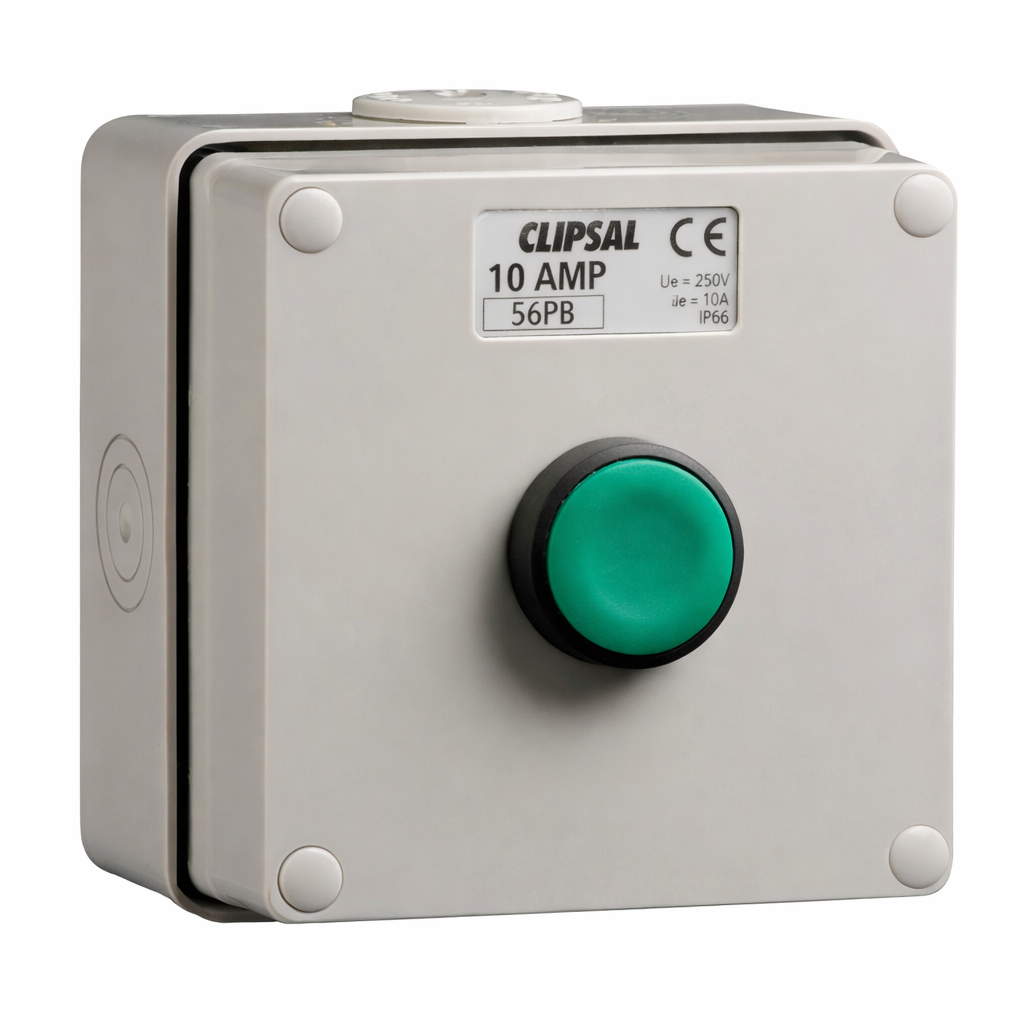

Clipsal 56 Series Start Push Button Control Station IP66 Grey

The Clipsal 56PB-GY 56 Series Start Push Button Control Station is a durable and reliable control switch designed for demanding industrial and commercial environments. Finished in grey and built as part of the trusted Clipsal 56 Series range, this push button station is ideal for start control applications where weather resistance, durability and dependable operation are essential. With a robust IP66 enclosure, it is well suited to harsh Australian conditions and helps protect against dust and water ingress. This single push-button control station features a green operator marked START and is rated at 250V 3A, with a rated current of 10A. It uses screw terminal connections for 1mm² to 4mm² solid cable and is designed to perform in ambient temperatures from -25°C to 75°C. Compact yet rugged, the 56PB-GY measures 101mm wide, 107mm high and 76mm deep, making it a practical choice for industrial machinery, plant equipment and general control applications.

  • Grey enclosure
  • Green push-button operator
  • Marked START
  • Suitable for control applications
  • Single command position
  • 1 pole configuration
  • 250V 3A rating
  • 10A rated current
  • IP66 protection rating
  • Suitable for harsh indoor and outdoor environments
  • Screw terminals for 1mm² to 4mm² solid cable
  • Terminal tightening torque 0.8Nm
  • Short-circuit protection 10A
  • Short-circuit withstand 1.0kA
  • Operating temperature range -25°C to 75°C

Click here for Data Sheet

SKU 56PB-GY
