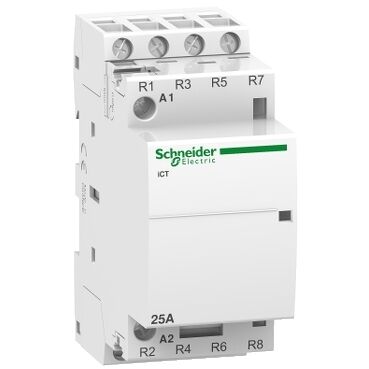

Schneider ICT25A 4NC 220/240VAC 50HZ Contactor

• This Acti9 iCT is a modular contactor.
• It is a 4P remote control device with 4 normally close contacts.
• The In rated current is 25A for AC-7a and 8.5A for AC-7b. The Ue rated operational voltage is 400VAC.
• The Uc control voltage is 220VAC to 240VAC. This device could be used for control circuits.
• It is compatible with all the Acti9 control auxiliaries, for lighting, heating & ventilation control applications.
• This device could be used for remote switching lighting loads, small motors (fans, mixers) or HVAC system applications.
• This product is compliant with IEC/EN 61095 standard.
• Electrical endurance goes up to 100000 cycles for AC-7A or AC-1, 30000 cycles for AC-7C, AC-7B, AC-3, AC-5A or AC-5B The maximum switching operations is 6 per minute.
• The Ui rated insulation voltage is 500VAC.
• The Uimp rated impulse withstand voltage is 4kV. Pollution degree is 2.
• It is DIN rail mountable. Its width is 4 pitches of 9mm. The product color is white (RAL9003).
• The dimensions are (W) 81mm x (H) 36mm x (D) 60mm. According to IEC 60529 standard, the degree of protection is IP20 and IP40 in enclosure.
• The operating temperature is from -5°C to 60 °C. The storage temperature is from -40°C to 70°C.

Click here for Data Sheet
